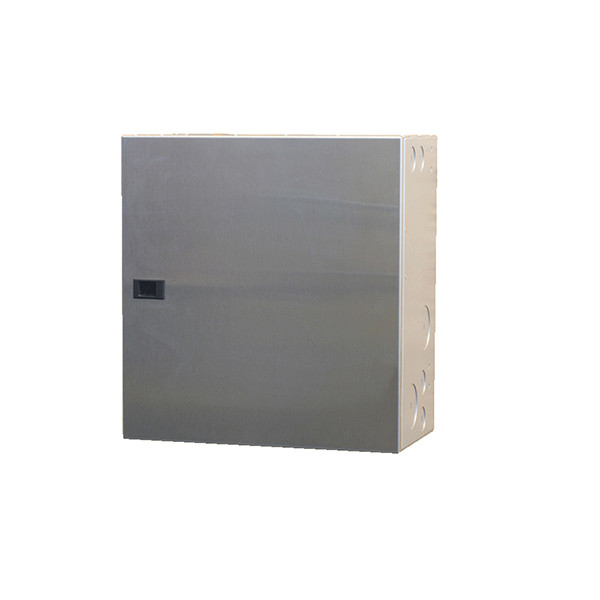

OutBack Radian GSLC175-PV-120/240 Prewired GS Load Center

Outback, Radian Prewired GS Load Center with two 175A breakers, dual 80A GFDI and PV breakers for two charge controllers, FLEXnet DC and three 500A shunts, 2-pole 120/240VAC 50A bypass breakers, dual 2-pole 120/240VAC 50A input breakers, 10 busbars, GSLC175-PV-120/240

OutBack’s GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC over-current protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass.

Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications. The GSLC175-PV-120/240 can be used with AC-coupling applications in grid-tied systems.

The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.

Features

• Safety - Dual AC inputs and DC connections. UL 1741 end-to-end. Fully integrated from industry leading brand.


• Efficient - 120/240VAC and 230VAC designs. Greater dynamic stability.


• Flexible - Pre-wired or customized options for quick and easy installation.
