OutBack IBR-2-48-175 Integrated Battery Rack

Hover over image to zoom

  • IBR-2-48-175
OutBack Power
MSRP: $1,595.95
$1,357.30 (You save $238.65)
SKU: ALG-048-03001Z
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 60.00 LBS

 Product Description

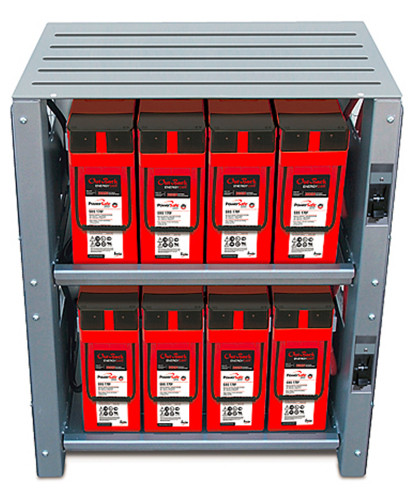

OutBack Power Integrated Battery Rack - IBR-2-48-175

Outback, Integrated Battery Rack, 2 Shelf Unit for 48V Systems, IBR-2-48-175

The OutBack Integrated Battery Rack system is a comprehensive battery enclosure solution with cell interconnects, cabling, and series string overcurrent protection and disconnects included, making it easy to order and install. All electrical connections are made at the factory and ship fully assembled with the exception of the batteries, which can be quickly added and connected on the jobsite.

Unlike typical steel racks, the OutBack design is crafted of powder coated aluminum, resulting in a rack that maintains a clean, durable appearance even in challenging environments. Clear covers allow for visual inspection while providing additional protection for the batteries and electrical connections. The rack can accommodate up to eight (8) EnergyCell GH batteries, and supports 48 volt systems.

Features

  • Quality Meets Power - Ideal for use with OutBack Radian or FlexPower Systems. Up To 19.2 kWh in one box. Supports two 48 volt strings of OutBack EnergyCell batteries.
  • User Friendly - Fast installationProtective terminal coversSpace saving design with small foot-print.
  • Efficient & Secure - Over-current protection on each battery string for added safety and flexibility. Well-ventilated for increased battery safety and longevity. Designed to meet UL1741. ISO registered 9001.



General Information
Manufacturer: OutBack Power
Product Line:
Battery Rack
Model ID:
IBR-2-48-175
Certifications and Safety Ratings: ul.jpg iso.jpg



Mechanical Data

Technology: Battery Rack
Dimensions:
33.00 x 27.00 x 21.25 inches
Weight: 60.00 lbs
Enclosure: 0.125-Inch Thick Aluminum Enclosure with FLEXware Silver Finish, Plated Copper Bus Bars, and Clear Protective Covers.
Capacity: Up to Twelve (12) EnergyCell Batteries



Electrical Data

String Over-Current Protection: 175 ADC
Gauge of Conductors: 1/0 AWG
Nominal System Voltage: 48 VDC
Supported Batteries: EnergyCell 200RE, EnergyCell 170RE, EnergyCell 200GH



Datasheets

Document Type
logo-adobe-pdf-2.jpgOutBack Power IBR-2-48-175 Specifications Specifications
logo-adobe-pdf-2.jpgOutBack Power IBR-2-48-175 Installation Installation Guide
Warranty 5 Year Limited Warranty
logo-adobe-pdf-2.jpgOutBack Power IBR-2-48-175 Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Save


OutBack Power - OutBack IBR-2-48-175 Integrated Battery Rack
Price: 1357.3
Condition: new



 Warranty Information

Warranty: 5 Year Limited Warranty
