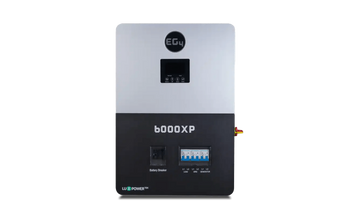

EG4 EG4HYB6K00V2 6.0kW Split Phase Off-Grid DC or AC Coupled Inverter

EG4 EG4HYB6K00V2 6.0kW Split Phase Off-Grid DC or AC Coupled Inverter - EG4HYB6K00V2

EG4, 6kW Split Phase Off-Grid Inverter, 6,000-watt 120/240, 60Hz, 48VDC, Transformerless Sinewave, AC or DC Coupled, 2 MPPT PV inputs, 480Vdc Max, EG4HYB6K00V2

The 6000XP is a 208/240 VAC split-phase, 48 VDC off-grid inverter/charger capable of utilizing 8kW of PV and efficiently outputting 6kW of power while also charging the battery bank. Parallel up to 16 units for 96kWs worth of output power and control multiple stations and units using the new EG4® monitoring software.

This cutting-edge 6000XP All-in-One Inverter & Charger from EG4 is a multifunctional, split-phase off-grid and solar inverter, capable of supporting even the most robust home power systems with a rated power of 6000W and the ability to handle PV arrays of up to 8000W. This high-tech inverter features a built-in switchgear for simple, secure installations, and comes equipped with an in-depth LCD touch screen interface and remote monitoring capabilities for enhanced visibility and a smoother user experience, as well as 2 MPPT inputs, built-in circuit breakers, and an integrated UPS module for seamless input switching in only 15 – 30ms. Plus, by leaving behind outdated transformer-based designs, the 6000XP inverter is able to remain lightweight and energy-efficient, consuming minimal power during idling periods, without having to compromise on surge capacity or line imbalance capabilities.

The 6000XP inverter supports a variety of working modes and system configurations, so whether you’re looking to enhance your home’s solar backup system, or upgrade your homestead’s off-grid ESS setup, this inverter can handle a wide range of home power applications. Plus, through its smart load control, AC coupling abilities, and peak shaving function, you can meet your power needs and protect your home against unstable grids and rolling blackouts, while seeing huge savings each month on your electric bill. Order today to optimize your home’s power with the state-of-the-art 6000XP All-in-One Inverter & Charger from EG4.

Features

All-In-One Solar Inverter
Capable of running entirely off the grid, or with grid input for supplemental charging and output power.

480VDC Max
The extra high voltage enables lower cable sizing for the 2 MPPTs with recommended PV input of 8kW eliminating the need for a combiner box.

Mountable Wi-Fi Device
Enables wireless connection between our new monitoring platform and the 6000XP through the app or online website.

Closed-Loop Communications
Able to communicate with EG4 48V batteries and other battery brands.
*A firmware update may be required for closed-loop communications with LifePower4 batteries.

High Frequency, Split Phase Output
Transformerless, High Frequency, Split-Phase Design Allowing 120/240 v With a Single Unit.
