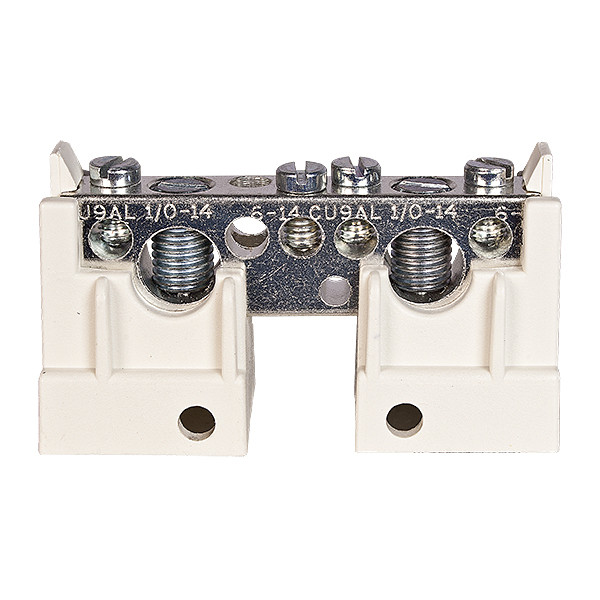

MidNite Solar MNSBB-W Short Busbar

Midnite Solar, Short White Busbar, MNSBB-W

(Midnite Short Busbar) Shorter version of the insulated bus bars. These are useful for PV+ input on the narrow OB E-Panel and for a separate PV- bus bar for charge controllers that require them. 180 amps. Four #6 and two 1/0 wire slots.

These UL-listed busbars can be used in the Mini-DC Disconnect above. Each MNT bar has colored insulation, four 0 AWG and eleven 6 AWG usable wire slots with 10-32 UNF screws, and is 4.63" long. The MNS is a shorter version, useful for PV + input on the narrow OB E-Panel, Big Baby Box, Quad box and for a separate PV busbar for charge controllers. The MNS has four 6 AWG and two 0 AWG wire slots. The MNG ground busbar is 3.45" long with green screws and has two 0 AWG and seven 6 AWG wire slots with mounting screws. The MNIBIGBUSBAR is a pair for positive and negative with five battery connections and six small wires. The MNSHUNT has four studs besides the shunt connection.

The MNBREAKER-BB-PLUS has eight studs besides the large breaker connection.

The MNBREAKERADAPTER allows the mounting of a 3/4"-wide panel-mount breaker in a 1” breaker space.

Features

• Highlights - Easy installation and high compatibility.
