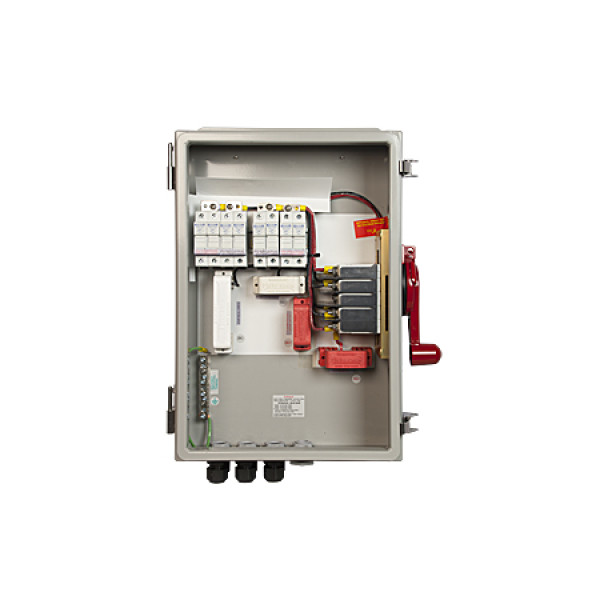

Midnite Solar MNPV8HV-DLTL 4X-PSB String Combiner w/ Disconnect
Hover over image to zoom
Discontinued
SKU: ALG-053-02978
Note: Out of Stock - See manufacturer for similar products.
Weight: 18.00 LBS
Product Description
| Midnite Solar String Combiner with Disconnect - MNPV8HV-DLTL 4X-PSB |
|
Midnite Solar, 80A 600VDC 4-String 2 Pole 2 Channel String Combiner with Disconnect, Birdhouse Compatible with PSB, MNPV8HV-DLTL 4X-PSB SMA requested MidNite Solar to design and build these DLTL combiners. There are 4 strings entering the combiner with 2 separate strings out. Specifically designed for the new dual channel MPPT on the transformer-less inverters. |
|
Features
|
| General Information | |
| Manufacturer: | Midnite Solar |
| Product Line: |
MN Series |
| Model ID: |
MNPV8HV-DLTL 4X-PSB |
| Certifications and Safety Ratings: |  |
| Mechanical Data |
|
| Technology: | String Combiner with Disconnect |
| Dimensions: |
24.00 x 19.00 x 6.00 inches |
| Weight: | 18.00 lbs |
| Number of Fuse Holders: | 8 |
| Current Rating: | 60 Amps |
| Maximum Output Wire Size: | 0 AWG |
| NEMA Rating: | NEMA 4X |
| Deadfront: | Yes |
| Output Circuits: | 2 |
