MidNite Solar MNPV8-MC4 Combiner Box

Midnite Solar, Combiner box, Pre-wired with 2 x 4 String Panel mount MC4 connectors, fuseholders & 15A fuses, 200A bus, NEMA 3R, MNPV8-MC4

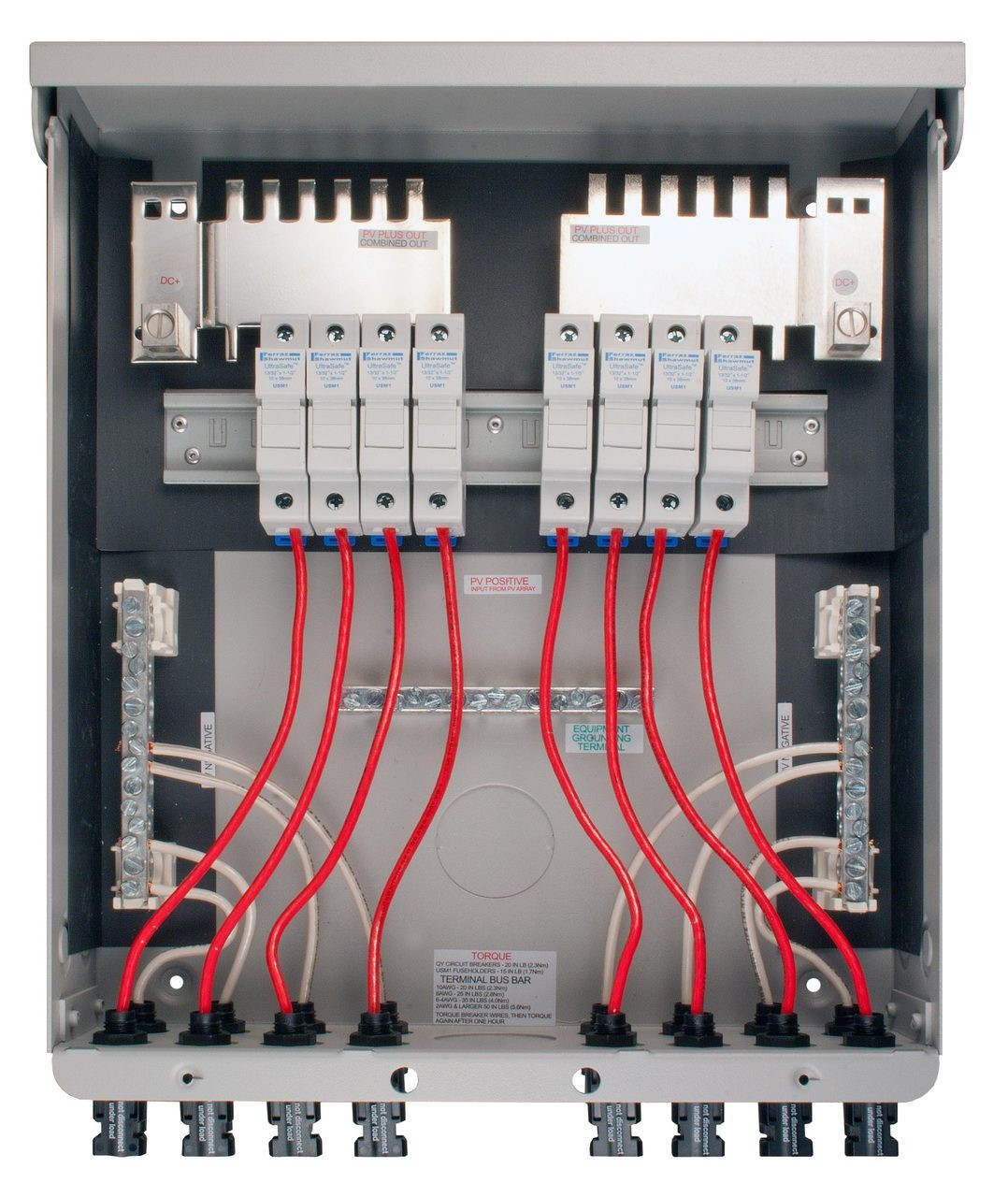

The Pre-wired MNPV8 combiner is rated for outdoor use. Designed for combining high voltage strings using 10mm x 38mm fuses up to 200 amps total. The use of touch safe din rail mount fuse holders and fuses allow operation up to 600 Volts. The MNPV8 is rated for up to 200 amps.

Features

• User Friendly - Fast, Convenient hook up with industry standard connectors. Tin plated copper bus bar that connect PV Plus outputs that can be set up as 8 strings or 2 strings of 4. Connectors for PV in and PV out on bottom, additional knockouts on bottom and sides.


• Efficient- All aluminum powder coated housing that won’t rust. Flip up cover that can stay in the open position during installation. 2 PV Negative bus bars with #6 and 1/0 connections. Chassis ground bus bar with #6 and 1/0 connections.


• Safety - Standard DIN rail with (x) 30 amp touch safe fuse holders. 15 amp fuses included. Dead front cover snaps into place after wiring is complete for safety. Top surface is available to bring conduit in from directly above the enclosure.
