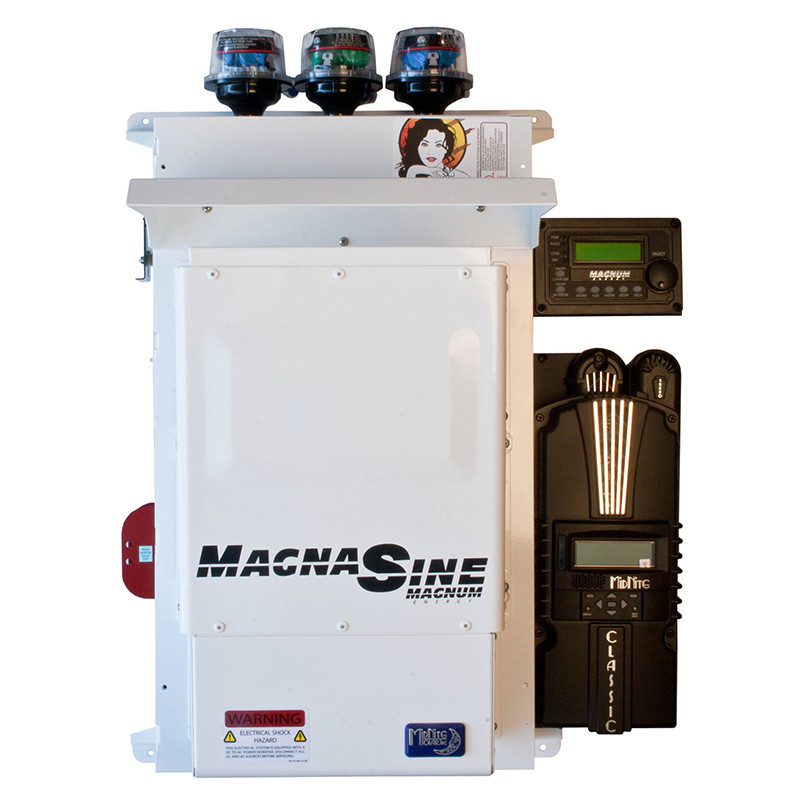

Midnite Solar MNEMM1524AECL150 Pre-Wired System

Midnite Solar, Pre-Wired Off Grid System, 120VAC, MM1524AE 1500W Inverter, Classic 150 & WhizBang Jr., RC50 display, MNE175STM-240 E-Panel, 2 MNSPD, MNEMM1524AECL150

The MNE-240 Series E-Panel enclosure from MidNite Solar provides the basic DC and AC over-current protection and disconnects required for a NEC compliant renewable energy system. It is specifically designed to accommodate inverters that provide 120/240VAC in a single unit. The MNE-240 Series E-Panel can expand to grow as your needs arise.

Features

• User Friendly - Cut-outs for mounting up to six additional 13mm wide din-rail mount AC and DC breakers (for circuits such as PV, wind, hydro or AC distribution). One rectangular cut-out for mounting a North American GFCI style AC outlet. Dual 50 amp AC input disconnects for generator or utility (prewired). Inverter mounts on a unique hinged door to keep a small system foot-print.


• Efficient - Inverter, remote control and charge controller mounting hardware included. Bracket included for mounting optional charge controller (Classic or MX60). Dual 50 amp inverter AC Bypass Switch (prewired). E-Panel mounting brackets are included to aid in one person installations. Powder-coated steel chassis with knockouts to accommodate various install needs.

• Safe - Conforms to UL508A 1st Edition and CSA C22.2 #14-M95 (Industrial Control Panel). Heavy duty 150 amp bus-bars for AC HOT, NEUTRAL, GROUND, BATT +/- and PV + included. 500 amp/50 mV shunt included for battery monitoring systems. Inverter battery breaker, inverters cables and snap in grommets included.
