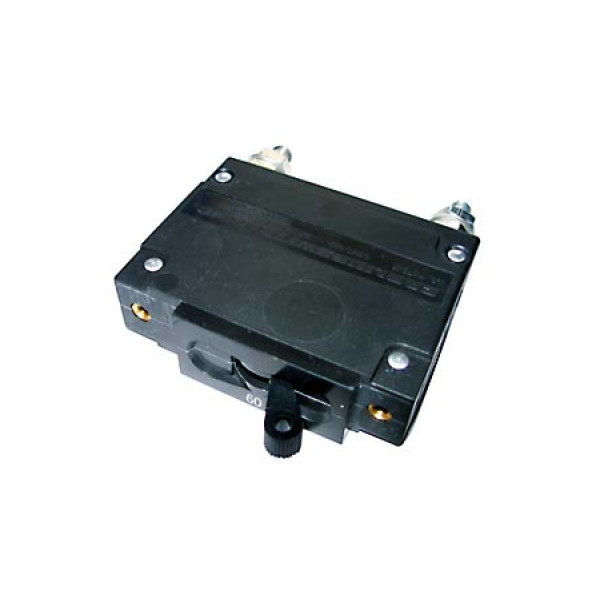

MidNite Solar MNEDC90 90A Circuit Breaker

Midnite Solar, 90A 150VDC 1-Pole Circuit Breaker, MNEDC90

90A 150VDC Panel Mount. 10,000 AIC All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure.

These are single-pole ¾"-wide breakers with ¼" stud connections and require ring terminals on wires connected to them. These breakers can be used for DC protection in OutBack Power FLEXware and Radian GSLC enclosures, and MidNite E-Panels (three spaces), or as AC breakers in the OutBack Power FLEXware 250. The two-pole AC and MidNite 300 VDC breakers are double width and take two spaces. The OutBack 300VDC single pole take one space and the two pole breakers take two spaces each. The AC breakers are for use with the Radian inverter GSLC panels. The 300VDC two pole breakers can be used to meet 2017 code to break both the positive and negative PV legs. OutBack Power breaker models ending in “RT” are remote trip breakers that can be used with the ICS+ system for rapid shutdown, see OutBack ICS PLUS product lines.

Features

• Highlights - Easy installation and high compatibility.
