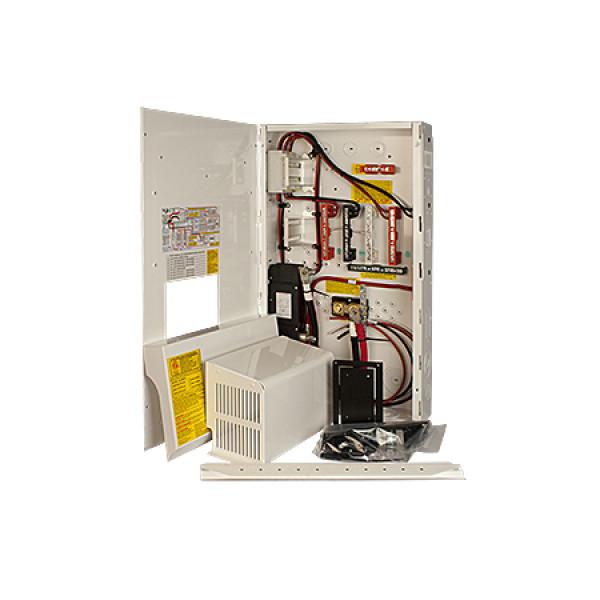

MidNite Solar MNE175STM-240 Combiner Box w/ Disc
Hover over image to zoom
MidNite Solar
Product Description
| Midnite Solar 175A String Combiner with Disconnect - MNE175STM-240 |
|
Midnite Solar, 175A 120/240VAC White Steel Left Door E-Panel for Magnum, MNE175STM-240 The MidNite Solar E-Panel comes standard with the basic over-current protection and disconnects required to install your renewable energy system. It can also expand to grow as your needs arise. Magnum inverters are mounted on a unique hinged door to minimize system footprint. Mounting brackets are included to aid in one-person installations. They come with a main breaker, inverter connection, a 500 A/50 mV shunt for battery monitoring systems, an AC input and bypass, PV input busbars, DIN rails, three panel-mount breaker knockouts, ground bus, remote display mounting brackets, a charge controller bracket, a wall-mount bracket and other hardware. 120/240 VAC models are for Magnum MS-PAE inverters. |
|
Features
|
| General Information | |
| Manufacturer: | Midnite Solar |
| Product Line: |
MNPV |
| Model ID: |
MNE175STM-240 |
| Certifications and Safety Ratings: |  |
| Mechanical Data |
|
| Technology: | String Combiner with Disconnect |
| Dimensions: |
28.00 x 18.00 x 11.00 inches |
| Weight: | 39.00 lbs |
| Main Breaker Current Rating: | 175 Amps |
| Maximum DC Voltage: | 300VDC |
| Maximum AC Voltage: | 240VAC |
| Maximum Wire (Main Lug): | 4/0 AWG |
| Number of Spaces: | 10 |
| NEMA Rating: | NEMA 1 (Indoor) |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
MidNite Solar - MidNite Solar MNE175STM-240 Combiner Box w/ Disc
Condition: new
