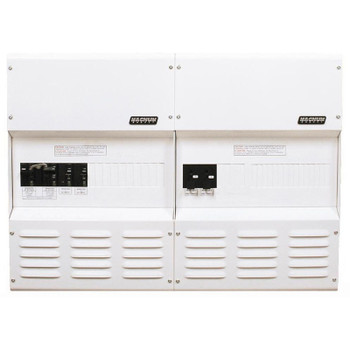

Magnum MPDH175-30D Panel Dual Enclosure

Magnum, Panel Dual Enclosure, HiPower for max 4 inverters, with 30A dual pole AC input breaker, 175A Disconnect, MPDH175-30D

Magnum Panel, Dual High (-30D) is designed to acommodate two to four* MS-PAE Series inverters stacked in a parallel configuration.

*Note: the first two MS-PAE inverters mount on top of the MPDH (-30D) enclosure; each additional MS-PAE inverter requires a MPXDxxx-30D extension enclosure.

MPDH175-30D includes:

Two 175ADC disconnect breakers

Two dual 30A AC input breakers

AC output breaker

AC bypass breaker

1000A/100mv DC shunt

Features

• Safety - AC over-current protection, grounding connections, and full system inverter bypass switch.


• Efficiency - Designed specifically for single inverter applications.


• User Friendly - Easy installation and operation.
