Longi Solar 295w Mono Solar Panel - LR6-60PB-295M |
Longi Solar, 295w, 60 Cell Monocrystalline, Black on Black Design, MC4 or MC4 Comparable, LR6-60PB-295M Established in 2000, LONGi has produced photovoltaic cells since 2007 and is the world leader in photovoltaic cell production. The LR6 lineup is an efficient monocrystalline 60-cell module, with excellent electrical and solid structural performance (5400 Pa snow load and 2400 Pa wind load). These modules feature black 40mm frames with white back sheets, MC4 connectors, and industry-standard -0/+5W sorting. LONGi backs these modules with a 10-year product warranty and 25-year linear warranty. They are certified to UL 1703, IEC 61215, IEC 61730 and are manufactured in an ISO 9001/14001 certified facility. The LR6-60PB series has an aesthetic appearance with black frame and backsheet, best suited for rooftop installations. |
Features
|
General Information | |
Manufacturer: | Longi Solar |
Product Line: |
HiMO1 |
Model ID: |
LR6-60PB-295M |
Manufactured In: | China |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |

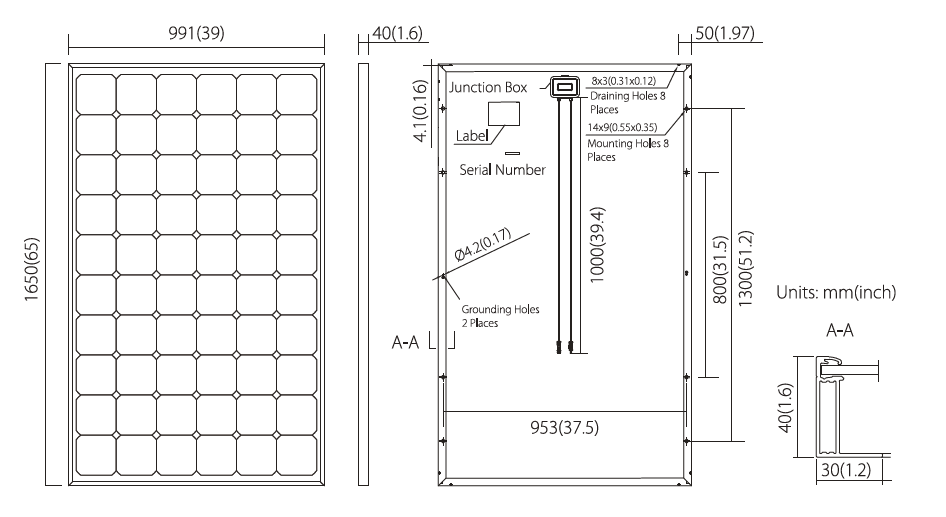

64.96 x 39.01 x 1.57 inches (LR6-60PB-295M Dimensions) |
Weight: | 40.12 lbs |
Cell Orientation: | 60 (6x10) |
Junction Box: | IP67, Three Diodes |
Output Cable: | 4mm², 1000mm in Length |
Connector: | MC4 or MC4 Compatible |
Operational Temperature: | -40°C ~ +85°C |
Power Output Tolerance: | 0~ +5W |
Maximum System Voltage: | DC1000V (IEC) |
Maximum Series Fuse Rating: | 15 Amps |
Nominal Operating Cell Temperature: | 45±2°C |
Application Class: | Class A |
Electrical Data |
|
Maximum Power (Pmax/W): | 295 Watts |
Open Circuit Voltage (Voc/V): | 39.90 Volts |
Short Circuit Current (Isc/A): | 9.69 Amps |
Voltage at Maximum Power (Vmp/V): | 32.60 Volts |
Current Maximum Power (Imp/A): | 9.05 Amps |
Module Efficiency: | 18.00% |
Front Side Maximum Static Loading: | 5400Pa |
Rear Side Maximum Static Loading: | 2400Pa |
Hailstone Test: | 25mm Hailstone at the Speed of 23m/s |
Datasheets |
|
Document | Type |
Longi Solar LR6-60PB-295M Specifications | Specifications |
Longi Solar LR6-60PB-295M Manual |
Manual |
Warranty | 10 Year Materials and Processing Warranty |
Performance Guarantee | 25 Year Extra Linear Power Output Warranty |
Longi Solar Warranty | Warranty |
