JLM Energy E200-15.6 Energizr 15.6kWh Battery System

Hover over image to zoom

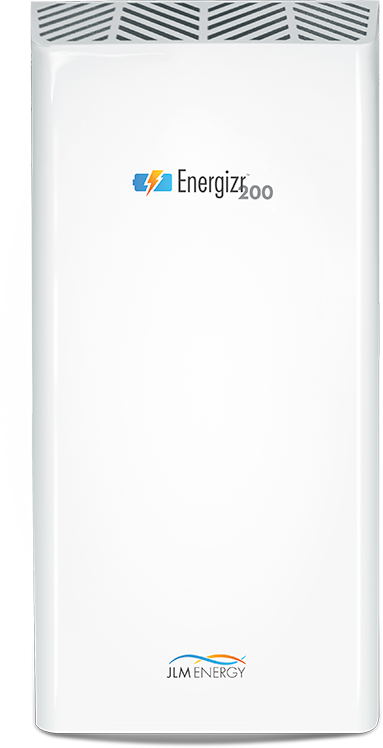

  • Energizr 200
  • Energizr 200 Side
JLM Energy
MSRP: $30,250.00
$23,515.00 (You save $6,735.00)
SKU: SLR-480-0006
Note: Out of Stock
Condition: New
Weight: 864.00 LBS
Shipping: Calculated at checkout

Unavailable. See manufacturer for similar products.

 Product Description

JLM Energy 15.6kWh Battery System - Energizr - E200-15.6

JLM, E200-15.6, Energizr 200, fully-assembled self-consumption battery system for grid-tied residential demand shaving, self-supply and TOU rate plans. DC coupled using Fronius Primo, 15.6 kWh LiFePO4 battery with BMS, UL certified, NEMA-3R enclosure, Linez monitoring, 20-Year warranty, system lifetime Measurz software/app account. Grid-tied only (not a backup system). inverter/stringing TBD, E200-15.6

Energizr 200 energy storage system is a grid-synergistic solution that works in harmony with solar and the utility grid to reduce your utility.

The system is controlled by JLM's Measurz software, providing it with a wide collection of discharge strategies aimed at saving the most money possible for a given region. These strategies include demand shaving, time-of-use shifting, and solar self-supply. Depending on the strategy in use, the way solar engery is managed can vary from case-to-case. In regions where net metering is unavailable, all excess solar production is either consumed directly by the home or stored in the system's batteries, while exporting to the grid is completely disabled.

To achieve maximum efficiency, Energizr 200 uses JLM's proprietary Symmetric DC Regulation (SDCR) technology. SDCR ties solar panels directly to the system's batteries, without the need for a charge controller or boost converter. The result is a significant reduction in round trip losses. In addition, SDCR is the only technology that allows energy produced by solar to charge a battery and power a home simultaneously using a single inverter.

Features

  • Highlights - Storage capacity: 7.8 kWh to 20.8 kWh (kilowatt hours) (up to 8 JLM battery packs per system). Inverter and solar capacity (kW): 3.8 / 5.2 / 6.2 / 7.6. Field upgradeable. Wall mountable on 2 adjacent studs (16 in or 14 in offset). Integrated support for smart thermostats, real-time whole-house power measurement, and real-time control of loads. Communications: Wi-Fi and/or Modbus RTU. Optional on-board AC charger: 1 kW or 2 kW.



General Information
Manufacturer: JLM Energy
Product Line:
Energizr
Model ID:
E200-15.6
Certifications and Safety Ratings: ul.jpg csa.jpg



Mechanical Data

Technology: Battery System
Dimensions:
66.00 x 32.00 x 9.00 inches
Weight: 728.00 lbs
Chemistry: Lithium Iron Phosphate (LiFePO4)
Number of Battery Packs: 3 (Up to 8)
Operating Temperature Range: -20°C to 60°C
Ambient Temperature Range: -20°C to 60°C
UL Certifications: UL 1642 File Number MH49498



Electrical Data

Battery Specifications

Single Battery Pack DC Voltage: 52.0 VDC (Volts of Direct Current)
Battery System DC Voltage Range (System): 100 to 460 VDC
Optional Charger Specifications

Charger AC Current Max: Fused at 20 Amps
Charger AC Voltage Input: 240 VAC Split-Phase
Charger Max. DC Voltage Output: 470 VDC
AC Connection Specifications

AC Voltage Input: 240 VAC Split-Phase
AC Input Current Max: 40 Amps
AC Output Current Max: 40 Amps
AC Frequency: 60 Hz
DC Connection Specifications

Number of Solar Strings: 3
Number of DC Output Channels: 1
Open Circuit DC Voltage Max: 600 VDC
Operating DC Voltage Range: 100 to 600 Volts



Datasheets

Document Type
logo-adobe-pdf-2.jpgJLM Energy Energizr E200 Specs Specifications
logo-adobe-pdf-2.jpgJLM Energy Battery Specifications Installation Guide
