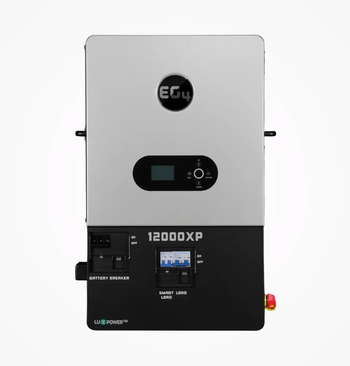

EG4 EG4-12000XPUS 12.0kW All-in-One Off-Grid Inverter

EG4 EG4-12000XPUS 12.0kW All-in-One Off-Grid Inverter - EG4-12000XPUS

EG4, 12000XP, 12kW AC Off-Grid Inverter, 24kW PV Input, 12kW Power Output, 60Hz, 48VDC, 120-240VAC Split-Phase, 2 MPPT PV Inputs, IP20, 5 Year Warranty, EG4-12000XPUS

The EG4 12000XP is a 48V split-phase, off-grid inverter/charger capable of utilizing 24kW of PV input and efficiently outputting 12kW of power while also charging your battery bank with the remaining 12kW of DC. Parallel up to 16 units for 192kW of output power and control multiple stations and units using the EG4 Monitor Center.

Features

All-In-One Off-Grid Inverter
Capable of running entirely off the grid or using grid electricity.

Up to 480 VDC Input
The extra high voltage enables lower cable sizing for the 2 MPPTs and a maximum utilized PV input of 24kW, eliminating the need for a combiner box.

Plug-In Wi-Fi Device
Enables wireless connection between the 12000XP and the EG4 app or EG4 Monitor system.

Closed-Loop Communications
Able to Communicate with Eg4 48 v Batteries and Other Supported Battery Brands.

Smart Loads
The Smart Load Port Enhances the Efficiency and Effectiveness of Solar Power Systems by Intelligently Managing Energy Consumption. This Allows the Port to Have Multiple Use Cases via Load Shedding, Accepting Ac Couple Power, or Power Shedding for Individual Smart Appliances.
