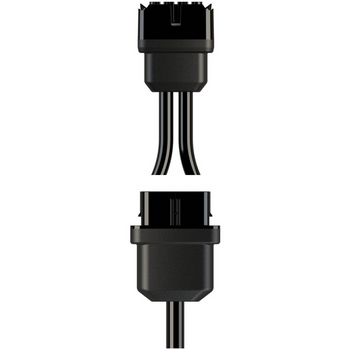

Enphase EN-QD-12-13-120-CUT-01 MUST BE SOLD IN MULTIPLES OF 3 CONNECTORS - Cut Cable Lengths QD cable (4x12AWG) 60-72 cell
Hover over image to zoom
Enphase Energy
$31.99
SKU: EN-QD-12-13-120-CUT-01
Condition: New
Weight: 2.00 LBS
Shipping: Calculated at checkout
Minimum Purchase: 3 unit(s)
Product Description
| Enphase EN-QD-12-13-120-CUT-01 MUST BE SOLD IN MULTIPLES OF 3 CONNECTORS - Cut Cable Lengths QD cable (4x12AWG) 60-72 cell - EN-QD-12-13-120-CUT-01 |
|
MUST be ordered in multiples of full box qty: 3
MUST BE SOLD IN MULTIPLES OF 3 CONNECTORS. WARNING: Cut cable lengths may include 2 sections of cable with a minimum of 12 micro connectors on the shorter cable length. Use of field wireable connectors and/or junction box may be required to follow design guidelines. · QD cable (4x12AWG) 60-72 cell. · Connector spacing is 1.7m (5.6ft). · 1.3m (4.3ft) max spacing between microinverters. · 4-pin male connectors plug directly into the IQ8 Commercial Microinverters. Connector count varies based in cut length and must be multiples of 3. · Center tap every 6 connectors, first center tap will be after 3 or 6 connectors and cut will start at connector 1 or 4.
The Enphase QD Cable and accessories are integral parts of the IQ8 Commercial Microinverter based PV system for grid-tied, three-phase 208 V PV applications. The QD Cable works with the Enphase IQ8 Commercial Microinverter and provides self-phase balancing and neutral sensing for phase loss protection. FeaturesReliable
Easy
Field Wireable QD Connectors
|
| General Information | |
| Manufacturer: | Enphase Energy |
| Product Line: | Accessories |
| Model ID: |
EN-QD-12-13-120-CUT-01 |
| Certifications and Safety Ratings: |       |
| Specifications |
|
|
Available now at Solaris – trusted distributor. |
|
| Datasheets |
|
| Document | Type |
|
Data Sheet |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
