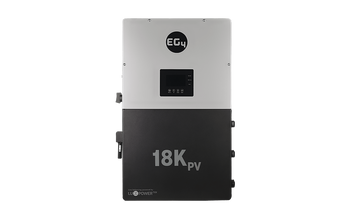

EG4 EG4INV18KPV00V2 12.0kW Hybrid DC or AC Coupled Inverter

EG4 EG4INV18KPV00V2 12.0kW Hybrid DC or AC Coupled Inverter - EG4INV18KPV00V2

EG4, 18KPV-12LV Hybrid Inverter, 18kW PV Input, 12kW Output, 12,000-watt 120/240-120/208Vac, 60Hz, 48VDC, Transformerless Sinewave, Grid Tie/Off-Grid, AC or DC Coupled, 3 MPPT PV inputs, 600Vdc Max, with AFCI/GFDI, SunSpec RSD Transmitter, 2 CT’s, Rule-21, NEMA 4X/IP65, EG4INV18KPV00V2

The EG4 18kPV is a 48V split-phase, hybrid inverter/charger capable of utilizing 18kW of PV and efficiently outputting 12kW of power while charging the battery bank. Parallel up to 10 units for 120kWs of AC power. Control multiple stations and units using the new EG4 monitoring software.

This cutting-edge 12K (18kPV) Hybrid Inverter from EG4 is a versatile, all-in-one inverter and charger, capable of supporting even the most robust home power systems with a rated power of 12000W and the ability to handle PV arrays of up to 18000W. This high-tech inverter guarantees a simple, plug-and-play installation, and comes equipped with an in-depth LCD touch screen interface and remote monitoring capabilities for enhanced visibility and a smoother user experience during operation, as well as 3 MPPT inputs, built-in circuit breakers, and an integrated UPS module for seamless input switching in only 15 – 30ms. Plus, by leaving behind outdated transformer-based designs, this 12K inverter is able to remain lightweight and energy-efficient, consuming minimal power during idling periods, without having to compromise on surge capacity or line imbalance capabilities.

This cutting-edge inverter supports a variety of working modes and system configurations, so whether you’re looking to enhance your home’s solar system, or upgrade your homestead’s off-grid ESS setup, this inverter can handle a wide range of home power applications. Plus, through its smart load control, AC coupling abilities, and peak shaving function, you can meet your power needs and protect your home against unstable grids and rolling blackouts, while seeing huge savings each month on your electric bill. Order today to optimize your home’s power with the state-of-the-art 12K (18kPV) All-in-One Inverter & Charger from EG4.

Features

All-In-One Hybrid Inverter
Capable of running entirely off the grid, using grid assist, or selling power back to the grid.

Up to 600 VDC Input
The extra high voltage enables lower cable sizing for the 3 MPPTs with a recommended maximum PV input of 21kW, eliminating the need for a combiner box.

Mountable Wi-Fi Device
Enables wireless connection between our new monitoring platform and the 18kPV through the EG4 app or EG4 Monitor system.

Closed-Loop Communications
Able to communicate with EG4 48V batteries and other battery brands. A battery firmware update is required for closed-loop communications with LifePower4 batteries.

High Frequency, Split-Phase Output
Allows for 120/240V single unit or 120/208 service operation.
