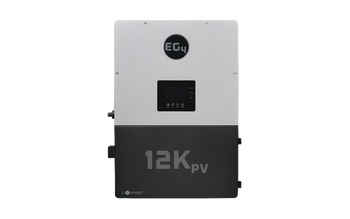

EG4 EG4INV12KPV00V2 8.0kW Hybrid DC or AC Coupled Inverter

EG4 EG4INV12KPV00V2 8.0kW Hybrid DC or AC Coupled Inverter - EG4INV12KPV00V2

EG4, 12KV-8LV Hybrid Inverter, 12kW PV Input, 8kW Output, 8,000-watt 120/240-120/208Vac, 60Hz, 48VDC, Transformerless Sinewave, Grid Tie/Off-Grid, AC or DC Coupled, 2 MPPT PV inputs, 600Vdc Max, with AFCI/GFDI, SunSpec RSD Transmitter, NEMA 4X/IP65, EG4INV12KPV00V2

The EG4 12kPV is a 48V split-phase, hybrid inverter/charger capable of utilizing 12kW of PV input and efficiently outputting 8kW of power while also charging your battery bank. Parallel up to 10 units for 80kW of output power and control multiple stations and units using the new EG4 monitoring software.

This cutting-edge 8K (12kPV) Hybrid Inverter from EG4 is a versatile, all-in-one inverter and charger, capable of supporting even the most robust home power systems with a rated power of 8000W and the ability to handle PV arrays of up to 12000W. This high-tech inverter guarantees a simple, plug-and-play installation, and comes equipped with an in-depth LCD touch screen interface and remote monitoring capabilities for enhanced visibility and a smoother user experience during operation, as well as 2 MPPT inputs, built-in circuit breakers, and an integrated UPS module for seamless input switching in 20ms or less. Plus, by leaving behind outdated transformer-based designs, this 12K inverter is able to remain lightweight and energy-efficient, consuming minimal power during idling periods, without having to compromise on surge capacity or line imbalance capabilities.

This cutting-edge inverter supports a variety of working modes and system configurations, so whether you’re looking to enhance your home’s solar system, or upgrade your homestead’s off-grid ESS setup, this inverter can handle a wide range of home power applications. Plus, through its smart load control, AC coupling abilities, and peak shaving function, you can meet your power needs and protect your home against unstable grids and rolling blackouts, while seeing huge savings each month on your electric bill. Order today to optimize your home’s power with the state-of-the-art 8K (12kPV) All-in-One Inverter & Charger from EG4.

Features

All-In-One Hybrid Inverter
Capable of running entirely off the grid, using grid electricity, or selling power back to the grid.

Up to 600 VDC Input
The extra high voltage enables lower cable sizing for the 2 MPPTs and a maximum recommended PV input of 15kW, eliminating the need for a combiner box.

Plugin Wi-Fi Device
Enables wireless connection between our new monitoring platform and the 12kPV through the EG4 app or EG4 Monitor system.

Closed-Loop Communications
Able to communicate with EG4 48V batteries and other battery brands. A battery firmware update is required for closed-loop communications with LifePower4 batteries.

Rapid Shut Down
The 12kPV is CSA C22.2#330:2017 and NEC 690.12 ready with its built-in RSD capabilities.
