Loading... Please wait...| Q Cells 325w Mono Solar Panel - Q.PLUS L-G4.1 325 |
|
QCells, 325W PV Module, H4, PV Wire, 35mm Clear Frame, 72 Cell Poly, 15A Fuse, 1500VDC, 300.6W PTC, Q.PLUS L-G4.2 325 The Q.ANTUM solar module Q.PLUS L-G4.2 325 with power classes up to 345 W is the strongest module of its type on the market globally. Powered by 72 Q CELLS solar cells, Q.PLUS L-G4.2 was specially designed for large solar power plants to reduce BOS costs. Only Q CELLS offers German engineering quality with our unique triple Yield Security. |
|
Features
|
| General Information | |
| Manufacturer: | Hanwha Q Cells |
| Product Line: |
Q.Plus |
| Model ID: |
Q.PLUS L-G4.1 325 |
| Manufactured In: | Germany |
| Certifications and Safety Ratings: |
| Mechanical Data |
|
| Technology: | Polycrystalline (Poly) |
| Dimensions: |

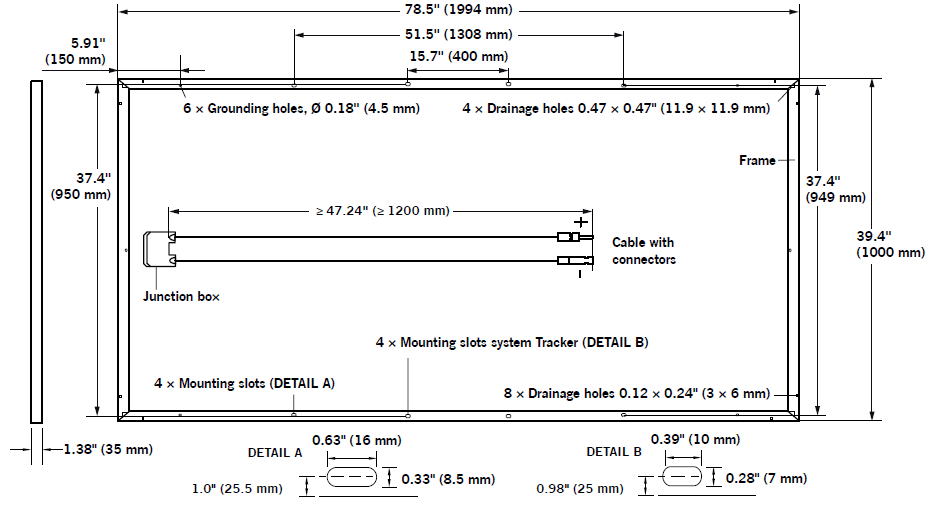

78.50 x 39.40 x 1.38 inches (Q.PLUS L-G4.1 325 Dimensions) |
| Weight: | 52.90 lbs |
| Front Glass: | Thermally Pre-Stressed Glass with Anti-Reflection Technology (0.13 in/3.2 mm) |
| Cells: | 72 Poly Cells |
| Frame: | Anodized Aluminum (Black) |
| Back Sheet: | Composite Film (White) |
| Connector: | Amphenol H4 UTX, IP68 |
| Junction Box: | Protection Class IP67 with Bypass Diodes (4.13 × 3.15 × 0.67 inches) |
| Cables: |
4 mm² Solar cable; (+) ≥ 47.24 in (1200 mm), (-) ≥ 47.24 in (1200 mm) |
| Electrical Data |
|
| Nominal Maximum Power (Pmax): | 325 Watts |
| Average Power (Pmpp): | 244.70 Watts |
| Short Circuit Current (Isc): | 9.49 Amps |
| Open Circuit Voltage (Voc): | 46.55 Volts |
| Current at Pmpp (Impp): | 8.91 Amps |
| Voltage at Pmpp (Vmpp): | 37.02 Volts |
| Efficiency Nominal Power (╖): | ≥ 16.50% |
| Operating Temperature: | -40°C + 85°C |
| Maximum System Voltage: | 1500V (IEC) / 1500V (UL) |
| Datasheets |
|
| Document | Type |
| Specifications | |
| Installation Manual | |
| Warranty | 12 Year Product Warranty |
| Performance Guarantee | 25 Year Linear Performance Warranty |
| Warranty |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 12 Year Product Warranty
Performance Guarantee: 25 Year Linear Performance Warranty
