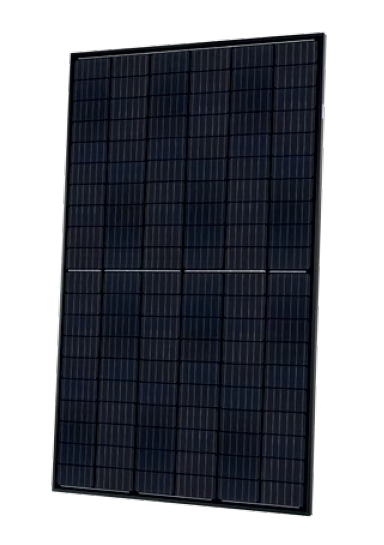

Hanwha Q Cells Q.PEAK DUO-BLK-G5-315 315w Mono Solar Panel

Hover over image to zoom

  • Q.PEAK DUO-BLK-G5-315
Hanwha Q Cells
MSRP: $399.99
$228.70 (You save $171.29)
SKU: SLR-110-1175
Note: Out of Stock
Condition: New
Weight: 41.23 LBS
Shipping: Calculated at checkout

Unavailable. See manufacturer for similar products.

 Product Description

Q Cells 315w Mono Solar Panel - Q.Peak DUO BLK-G5 315

QCells, 315W PV Module, MC-4, PV Wire, 32mm Black Frame Black back-sheet, BOB, 120 Mono ½ Cells, 20A Fuse, 1000VDC, 292.2 PTC, Q.PEAK DUO-BLK-G5-315

The new Q.PEAK DUO-G5 solar module from Q CELLS impresses thanks to innovative Q.ANTUM DUO Technology, which enables particularly high performance on a small surface area. Q.ANTUM‘s world-record cell concept has now been combined with state-of-the-art circuitry, half cells and a six-busbar design, achieving outstanding performance under real conditions − both with low-intensity solar radiation and on hot, clear summer days.

The new Q.PEAK DUO-G5 is a monocrystalline solar module with power classes up to 330 Wp and an efficiency of 19.9 %. Q.PEAK DUO-G5 solar modules offer higher yields over smaller surface areas. This is made possible by the new generation of Q.ANTUM's world-record-holding cell concept which has now been combined with state-of-the-art circuitry half cells and a six-busbar design. The front surface of the Q.PEAK DUO BLK-G5 is completely black and enhances the visual appearance of even the most exclusive residential system.

The Q CELLS Anti LID Technology eliminates light induced degradation (LID), which can greatly reduce system performance, almost completely. Other conventional monocrystalline solar cells will lose much of their initial performance, once exposed to sunlight. With Q.PEAK DUO-G5 this is not the case, thanks to Anti LID Technology.

Features

  • Technology - Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology. Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency of up to 19.9%.
  • Performance - Optimal yields, whatever the weather with excellent low-light and temperature behavior. Long-term yield security with Anti LID and Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q.
  • Reliable - High-tech aluminum alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa) regarding IEC. Inclusive 12-year product warranty and best in class 25-year performance guarantee.



General Information
Manufacturer: Hanwha Q Cells
Product Line:
Q.Peak
Model ID:
Q.Peak DUO BLK-G5 315
Manufactured In: China
Certifications and Safety Ratings: ce.gifcsa.jpg vde.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
66.34 x 39.37 x 1.26 inches
Weight: 41.23 lbs
Front Cover: 0.13 in (3.2 mm) Thermally Pre-Stressed Glass with Anti-Reflection Technology
Back Cover: Composite Film
Frame: Black Anodized Aluminum
Cell: 6 X 20 Monocrystalline Q.ANTUM Solar Half Cells
Junction Box: 70-85 mm x 50-70 mm x 13-21 mm. Protection Class IP67, with Bypass Diodes
Cable: 4mm² Solar Cable; (+) 1000mm, (-) 1100mm
Connector: Multi-Contact MC4, IP65 and IP68



Electrical Data

Power at MPP²: 315 Watts
Short Circuit Current (Isc): 9.89 Amps
Open Circuit Voltage (Voc): 40.29 Volts
Current at MPP (Impp): 9.41 Amps
Voltage at MPP (Vmpp): 33.46 Volts
Efficiency Nominal Power (╖): ≥ 18.70%
Operating Temperature: -40°C + 85°C



Datasheets

Document Type
logo-adobe-pdf-2.jpgQCells Q.Peak DUO BLK-G5 315 Specifications Specifications
logo-adobe-pdf-2.jpgQCells Manual
Manual
Warranty 12 Year Product Warranty
Performance Guarantee 25 Year Linear Performance Warranty
logo-adobe-pdf-2.jpgQCells Warranty Warranty
