Genasun GVB-8-PB-48V-WP MPPT Charge Controller

Hover over image to zoom

  • GVB-8-PB-48V-WP
  • GVB-8-PB-48V-WP
Genasun
MSRP: $189.00
$161.00 (You save $28.00)
SKU: ALG-020-03004
Note: 2-3 Week Lead Time
Condition: New
Weight: 1.00 LBS
Shipping: Calculated at checkout

 Product Description

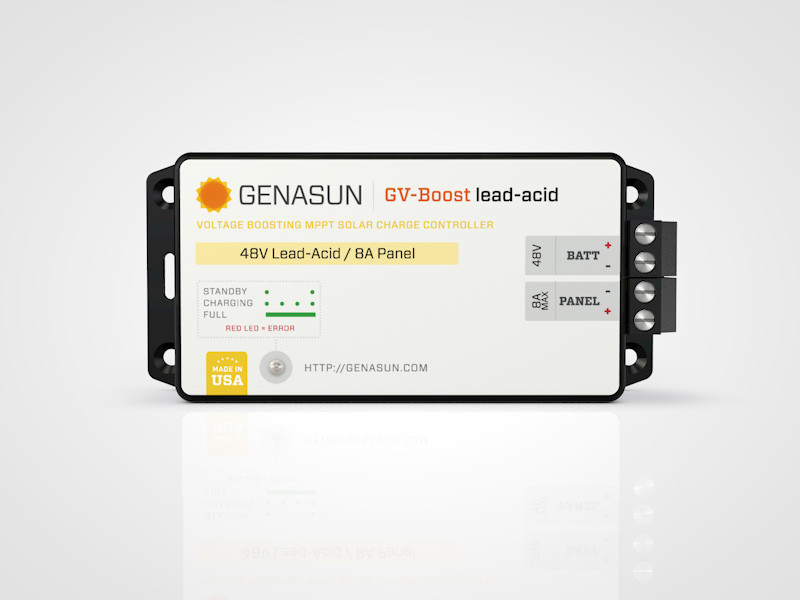

Genasun MPPT Charge Controller - GVB-8-PB-48V-WP

Genasun, Waterproof MPPT Voltage Boost Charge Controller, 48 VDC, 8A, GVB-8PB-48V-WP

Most solar charge controllers move power from a higher voltage panel to a lower voltage battery bank.  The GVB-series controllers, in contrast, pump electricity up hill. These controllers will take a lower voltage panel and boost the voltage to charge a 24V, 36V or 48V battery pack.  In fact, the GVB's will work with almost any panel that's below your battery voltage. Larger panels are cheaper per Watt than smaller panels, so using one large panel and a boost controller results in a significantly lower system cost than smaller panels in series with a conventional charge controller.

Features

  • Reliable - Genasun controllers are deployed to the most remote locations on earth. They endure years at sea, harsh Antarctic winters, freezing conditions in the upper atmosphere on solar powered airplanes, and in a few off-the-map locations. Made in the USA, each controller is put through complete electrical testing to ensure reliability. If you need mission-critical power, this is your controller.
  • High-Speed - Not all Maximum Power Point Tracking controllers were created equally. Most use a sweep and sleep method that scans the entire voltage range every 30-60 seconds. That's okay for a clear day, with a stationary panel. But moving vehicles and changing cloud cover require a faster, more advanced controller. Genasun controllers adapt to changing light conditions 15 times every second. They are always on target, capturing every bit of available sunshine. Simply put, other controllers can't keep up.
  • Computer-Controlled - Precise computer controlled charging ensures the optimal charge cycle for your battery. This increases the battery life, and maximizes battery capacity.



General Information
Manufacturer: Genasun
Product Line:
Solar Boost
Model ID:
GVB-8-PB-48V-WP
Certifications and Safety Ratings: ul.jpg



Mechanical Data

Technology: Maximum Power Point Tracking (MPPT)
Dimensions:
6.00 x 4.00 x 3.00 inches
Weight: 1.00 lbs
Charge Profile: Multi-Stage with Temperature Compensation



Electrical Data

Rated Panel Input Current: 8 Amps
Minimum Panel Voltage for Charging: 5 Volts
Minimum Battery Voltage for Operation: 9.5 Volts
Absolute Maximum Panel Voc: 63 Volts
Nominal Battery Voltage: 48 Volts
Maximum Recommended Panel Vmp: 43 Volts
Maximum Recommended Panel Power: 350 Watts
Bulk Voltage: 57.6 Volts
Absorption Voltage: 56.8 Volts
Absorption Time: 2 Hours
Float Voltage: 55.2 Volts
Battery Temperature Compensation: -112mV/°C
Electrical Efficiency: 96%-99% Typical
Night Consumption: 5mA
Tracking Efficiency: 99+% Typical
MPPT Tracking Speed: 15Hz



Datasheets

Document Type
logo-adobe-pdf-2.jpgGenasun GVB-8-PB-48V-WP Specs Specifications
logo-adobe-pdf-2.jpgGenasun GVB-8-PB-48V-WP Diagram Diagram
Warranty 5 Year Limited Warranty
