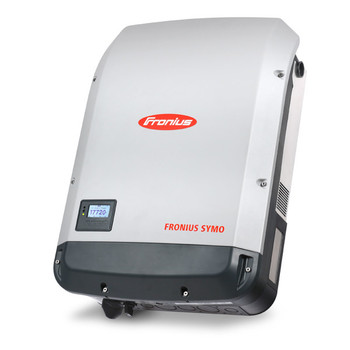

Fronius Symo Advanced 12.0-3 12kW 3-Ph Inverter

Hover over image to zoom

  • 4,210,091,801
  • 4,210,091,801 Side
MSRP: $3,695.00
$3,285.00 (You save $410.00)
Note: Ships LTL Freight Only
Condition: New
Weight: 91.90 LBS
Shipping: Calculated at checkout

 Product Description

Fronius 12KW 3 Phase INVERTER - Symo Advanced 4,210,091,801

Fronius, Symo Advanced 12.0-3 208/240, SunSpec, 12kW, 208/240VAC, no data manager card, 4,210,091,801

Fronius Symo inverters can be equipped with the WiFi Fronius Datamanager 2.0 card that enables Internet monitoring via the Fronius Solar.web portal on computer or smartphone. Only one card is required for multiple Symo inverters installed in the same location. The inverters also support a Modbus interface for third-party monitoring and datalogging. The Solar.Web monitoring portal can also utilize the free Fronius Solar.TV service, to transmit monitoring data to a public display, which includes system yield, energy production, and environmental benefits.

These inverters (with exception of the Symo 15.0-3-208) are now SunSpec compliant, enabling the use of third party MLPE devices to comply with NEC2017 code. If complying with NEC2014 code, all Symo inverters can be mounted next to the PV Array to meet Rapid Shutdown requirements. Fronius Symo inverters are covered by a 10-year warranty, which can be extended to 15 or 20 years.


  • Highlights - Dual-MPPT DC input (except for Symo 15.0-3-208). Internal Arc Fault Circuit Interrupter (AFCI) for added safety per NEC 2011. Inverter sizes available from 10.0 kW to 24.0 kW, 3P-208/240 VAC and 3P-480 VAC. Easy-to-mount SnapINverter concept with NEMA 4X enclosure. Can be mounted vertical on a wall, or mounted flat on standard racking, without needing specialized ballasted tilt racking. WiFi, wired Ethernet, or Serial monitoring with Datamanager 2.0 Card through Fronius Solar.Web Portal Meets SunSpec Standards, enabling use of module level MLPE Shutdown Devices (with exception of Symo 15.0-3-208). Standard 10-year warranty, with extensions available for up to 20 years
    Listed to UL 1741-2010, UL 1699B Issue 2-2013 and CSA TIL M-07 Issue 1-2013 for U.S.A. and Canada. Complies with: IEEE 1547-2003, IEEE 1547.1, ANSI/IEEE C62.41, FCC Part 15 A & B, C22.2 No. 107.1-01 (Sept 2001). Compliant to Rule 21 (UL 1741-SA) requirements


General Information
Manufacturer: Fronius
Product Line:
Symo Advanced
Model ID:
Certifications and Safety Ratings: ul.jpg csa.jpg etl.jpg


Mechanical Data
20.10 x 28.50 x 8.90 inches
Weight: 91.90 lbs
Protection Class: NEMA 4X
Overvoltage Category (DC/AC): < 1W
Night-Time Consumption: Transformerless
Cooling: Variable Speed Fan
Installation: Indoor & Outdoor Installation
Ambient Temperatue Range: -40 - +60 °C
DC Connection Technology: 6x DC+ and 6x DC- screw terminals for copper (solid / stranded / fine stranded) or aluminum (solid / stranded)


Electrical Data
Recommended PV Power: 9.95 - 15.50 kW
Maximum Useable Input Current: 25.00 A / 16.50 Amps
Minimum DC Current: 41.50 Amps
Maximum Array Short Circuit Current: 37.50 / 24.80 Amps
Operating Voltage Range: 200 V - 600 Volts
Maximum Input Voltage: 600 Volts
Admissible DC Conductor Size: AWG 14-AWG 6 copper direct, AWG 6 aluminum direct, AWG 4-AWG 2 copper or aluminum with input combiner
Max. Isc Input Terminal Rating: 33A


Document Type
logo-adobe-pdf-2.jpgFronius Symo Advanced Specifications Specifications
logo-adobe-pdf-2.jpgFronius Installation Guide Installation Manual
Warranty 10 Year Limited Warranty
logo-adobe-pdf-2.jpgFronius  Warranty Warranty
