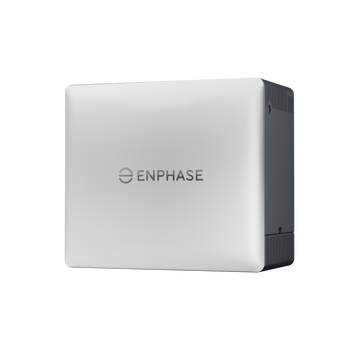

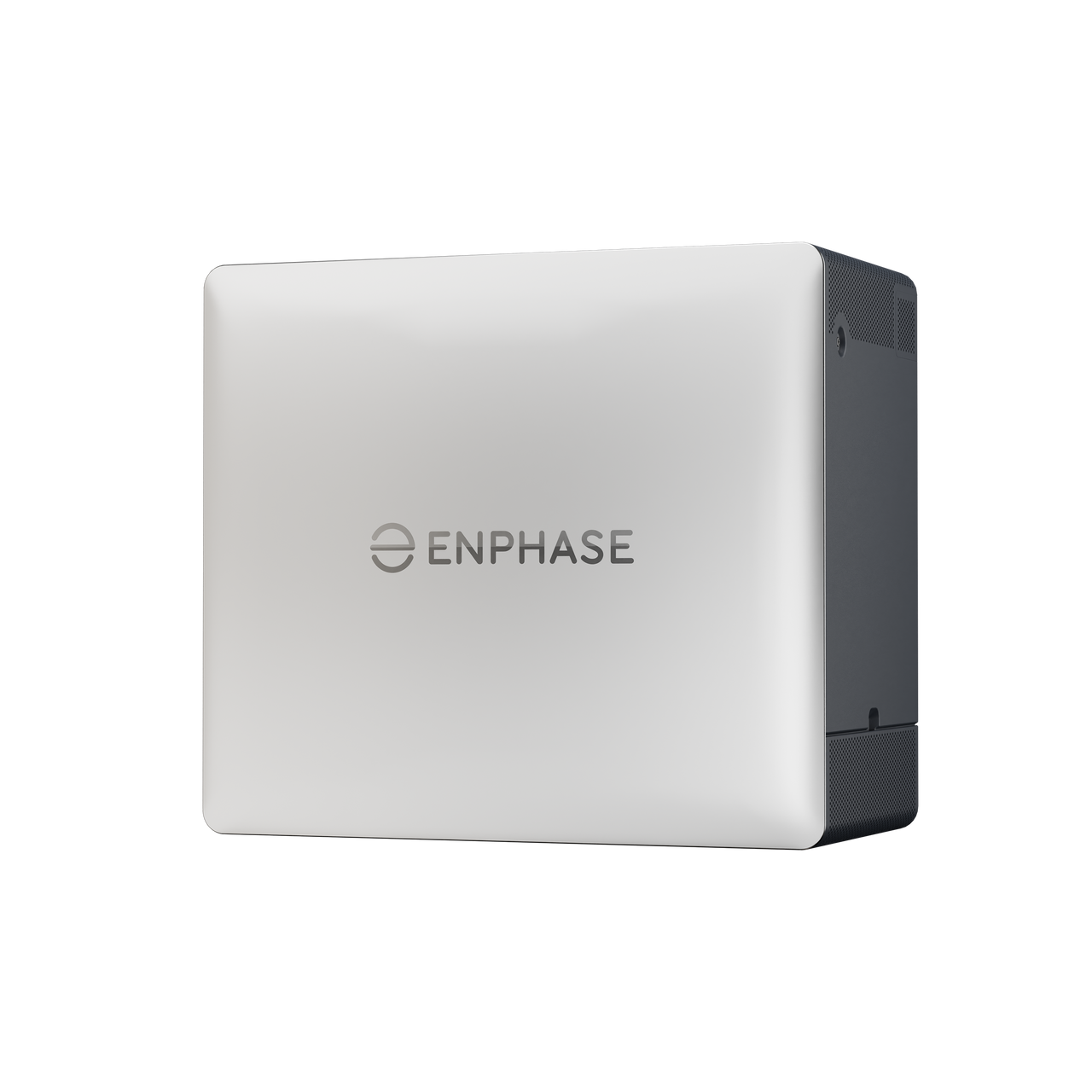

Enphase IQ Battery 10C

An all-in-one, AC-coupled storage system, the IQ Battery 10C integrates 240 V and 120 V microinverters, providing backup functionality and removing the need for additional neutral-forming hardware. It provides a total usable energy capacity of 10 kWh and delivers 7.08 kW of continuous power, easily supporting heavy loads such as HVAC units and pool pumps.

Its compact design requires less wall space while offering double the capacity of previous models. The system uses lithium iron phosphate (LFP) chemistry, which is cobalt-free. The battery is UL 9540A certified for safety and reliability. A modular architecture allows for easy expansion as energy needs evolve.

IQ Battery 10C also supports flexible installation with wall bracket and floor pedestal options. Thanks to its distributed architecture, even in the rare event that a microinverter experiences an issue, power continues to flow seamlessly—keeping your home running and your essentials protected. Supported by a 15-year limited warranty (6,000 cycles), the IQ Battery 10C offers dependable performance for both everyday energy management and backup.

Features

• Fully integrated AC battery system
• High energy density design taking up less wall space
• 120 V microinverters eliminate the need for additional neutral-forming hardware
• Easily scalable system (10 kWh to 80 kWh)
• Supports up to 90 A LRA to start demanding loads effortlessly
• Cools passively with no moving parts or fans
• Uses wired communication for fast and consistent connection
• Field-replaceable components enable in-place repairs without battery replacement
• Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity
• Quick and easy plug-and-play installation
• Remote monitoring and intelligent battery profiles from the Enphase App

IQ Battery 10C data sheet

IQ Battery 10C quick install guide

Enphase Energy System with IQ Battery 10C owner’s guide
