DASOL 90w Poly Solar Panel - DS-A18 - DS-A18-90 |
DASOL, 90w PV Module, White Back with Clear Frame, Made in China, DS-A18-90 Anji DASOL Solar Energy Science & Technology Co., Ltd., with a registered trademark “DASOL”, was established at 2006. DASOL is specialized in research, development, manufacturing and service of solar modules, solar lighting systems and solar power systems. With the leading professional R&D team and advanced manufacturing and testing facilities, DASOL has a concentration for off-grid electrification. Quality is one of our key elements for continuous growth. All products are designed according to IEC/UL standard and manufactured in ISO9001 certified production lines. We have TUV, CSA, IEC, CE, and RoHs certification. We grow with our customers by offering superior quality and service worldwide. |
Features
|
General Information | |
Manufacturer: | DASOL |
Product Line: |
DS-A18 |
Model ID: |
DS-A18-90 |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Polycrystalline (Poly) |
Dimensions: |

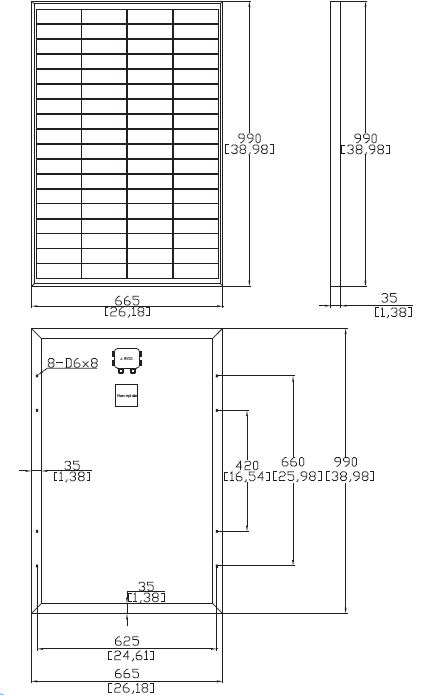

38.98 x 26.18 x 1.38 inches (DS-A18-90 Dimensions) |
Weight: | 17.24 lbs |
Operating Temperature: | -40°C to +85°C |
NOCT: | 48±3°C |
Temperature Coefficients (Isc): | +0.084%/°C |
Temperature Coefficients (Vm): | -0.39%°C |
Electrical Data |
|
Maximum Power (Pmax): | 90 Watts |
Tolerance of Pmax: | ±5% |
Open Circuit Voltage (Voc): | 22.30 Volts |
Maximum Power Voltage (Vmp): | 18.00 Volts |
Short Circuit Current (Isc): | 5.45 Amps |
Maximum Power Current (Imp): | 5.00 Amps |
Series Fuse Rating: | 8 Amps |
Maximum System VDC: | 600 Volts |
Datasheets |
|
Document | Type |
DASOL DS-A18-90 Specifications | Specifications |
Warranty | 3 Year Product Warranty |
DASOL DS-A18-90 Warranty | Warranty |
