DASOL 60w Poly Solar Panel - DS-A18 - DS-A18-60 |
DASOL, 60w PV Module, White Back with Clear Frame, Made in China, DS-A18-60 Anji DASOL Solar Energy Science & Technology Co., Ltd., with a registered trademark “DASOL”, was established at 2006. DASOL is specialized in research, development, manufacturing and service of solar modules, solar lighting systems and solar power systems. With the leading professional R&D team and advanced manufacturing and testing facilities, DASOL has a concentration for off-grid electrification. Quality is one of our key elements for continuous growth. All products are designed according to IEC/UL standard and manufactured in ISO9001 certified production lines. We have TUV, CSA, IEC, CE, and RoHs certification. We grow with our customers by offering superior quality and service worldwide. |
Features
|
General Information | |
Manufacturer: | DASOL |
Product Line: |
DS-A18 |
Model ID: |
DS-A18-60 |
Certifications and Safety Ratings: | ![]() ![]() ![]() ![]() ![]() |
Mechanical Data |
|
Technology: | Polycrystalline (Poly) |
Dimensions: |

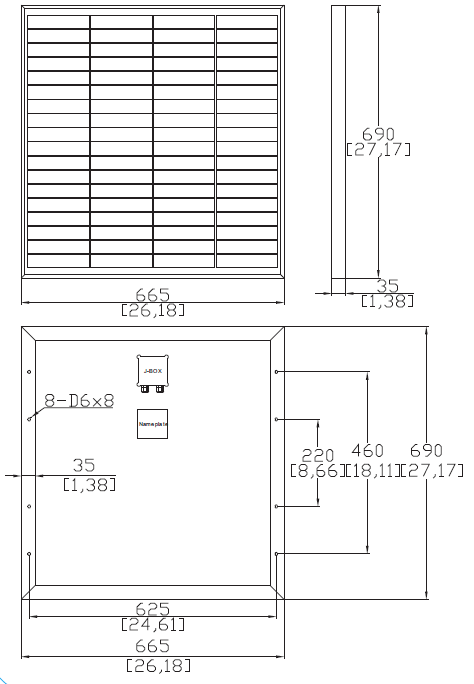

27.17 x 26.18 x 1.38 inches (DS-A18-60 Dimensions) |
Weight: | 12.69 lbs |
Operating Temperature: | -40°C to +85°C |
NOCT: | 48±3°C |
Temperature Coefficients (Isc): | +0.084%/°C |
Temperature Coefficients (Vm): | -0.39%°C |
Electrical Data |
|
Maximum Power (Pmax): | 60 Watts |
Tolerance of Pmax: | ±5% |
Open Circuit Voltage (Voc): | 22.30 Volts |
Maximum Power Voltage (Vmp): | 18.00 Volts |
Short Circuit Current (Isc): | 3.64 Amps |
Maximum Power Current (Imp): | 3.33 Amps |
Series Fuse Rating: | 6 Amps |
Maximum System VDC: | 600 Volts |
Datasheets |
|
Document | Type |
![]() |
Specifications |
Warranty | 3 Year Product Warranty |
![]() |
