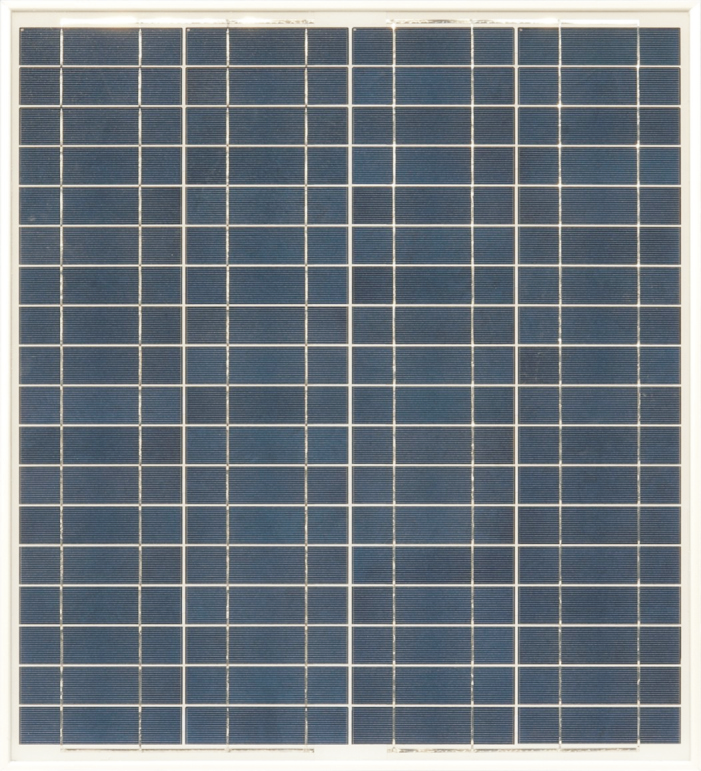

Loading... Please wait...| DASOL 60w Poly Solar Panel - DS-A18 - DS-A18-60 |
|
DASOL, 60w PV Module, White Back with Clear Frame, Made in China, DS-A18-60 Anji DASOL Solar Energy Science & Technology Co., Ltd., with a registered trademark “DASOL”, was established at 2006. DASOL is specialized in research, development, manufacturing and service of solar modules, solar lighting systems and solar power systems. With the leading professional R&D team and advanced manufacturing and testing facilities, DASOL has a concentration for off-grid electrification. Quality is one of our key elements for continuous growth. All products are designed according to IEC/UL standard and manufactured in ISO9001 certified production lines. We have TUV, CSA, IEC, CE, and RoHs certification. We grow with our customers by offering superior quality and service worldwide. |
|
Features
|
| General Information | |
| Manufacturer: | DASOL |
| Product Line: |
DS-A18 |
| Model ID: |
DS-A18-60 |
| Certifications and Safety Ratings: |
| Mechanical Data |
|
| Technology: | Polycrystalline (Poly) |
| Dimensions: |
27.17 x 26.18 x 1.38 inches (DS-A18-60 Dimensions) |
| Weight: | 12.69 lbs |
| Operating Temperature: | -40°C to +85°C |
| NOCT: | 48±3°C |
| Temperature Coefficients (Isc): | +0.084%/°C |
| Temperature Coefficients (Vm): | -0.39%°C |
| Electrical Data |
|
| Maximum Power (Pmax): | 60 Watts |
| Tolerance of Pmax: | ±5% |
| Open Circuit Voltage (Voc): | 22.30 Volts |
| Maximum Power Voltage (Vmp): | 18.00 Volts |
| Short Circuit Current (Isc): | 3.64 Amps |
| Maximum Power Current (Imp): | 3.33 Amps |
| Series Fuse Rating: | 6 Amps |
| Maximum System VDC: | 600 Volts |
| Datasheets |
|
| Document | Type |
| Specifications | |
| Warranty | 3 Year Product Warranty |
