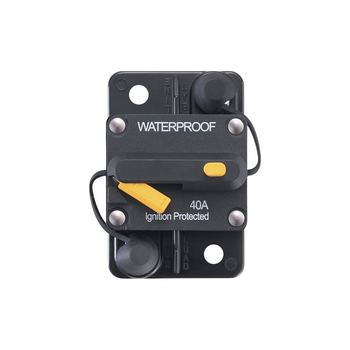

Rich Solar RS-CB40 Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Breaker

Rich Solar RS-CB40 Single Pole Waterproof Circuit Breaker Waterproof Thermal Type Breaker

Hover over image to zoom

  • Rich Solar RS-CB40 Single Pole Waterproof Circuit Breaker Waterproof Thermal Type Breaker
  • Rich Solar RS-CB40 Single Pole Waterproof Circuit Breaker Waterproof Thermal Type Breaker
  • Rich Solar RS-CB40 Single Pole Waterproof Circuit Breaker Waterproof Thermal Type Breaker
  • Rich Solar RS-CB40 Single Pole Waterproof Circuit Breaker Waterproof Thermal Type Breaker
  • Rich Solar RS-CB40 Single Pole Waterproof Circuit Breaker Waterproof Thermal Type Breaker
  • Rich Solar RS-CB40 Single Pole Waterproof Circuit Breaker Waterproof Thermal Type Breaker
Rich Solar
MSRP: $27.99
$22.39 (You save $5.60)
SKU: RS-CB40-Main
Condition: New
Weight: 5.00 LBS
Shipping: Free Shipping

 Product Description

Rich Solar RS-CB40 Single Pole Waterproof Circuit Breaker | Waterproof Thermal Type Breaker - RS-CB40-Main





Features

1. Advanced Electrical Protection

  • Overload & Short-Circuit Defense: Instantly cuts power when current exceeds limits, protecting sensitive electronics
  • High Interrupt Rating: Safely interrupts up to 3,000A @ 30VDC

2. Manual Reset Convenience

  • Push-to-Trip Button: Allows manual testing or circuit shutdown
  • Reset Lever: Quick and secure restart after interruption

3. Built for Harsh Environments

  • IP67 Waterproof & Dustproof: Fully sealed for reliable outdoor use
  • Rugged Housing: Flame-retardant UL 94V-0 thermoset plastic with insulated terminals

4. Versatile Installation Options

  • Panel or Surface Mount: Threaded studs (1/4"-28 or 3/8"-16), 50 in-lbs torque max
  • Wide Application Range: Ideal for trucks, buses, RVs, boats, ATVs, DC chargers, winches, and more

5. Certified Safety Standards

  • SAE J1625 / J1171 (Ignition Protected)
  • ABYC E-11 (Marine Applications)
  • CE (European Compliance)



General Information
Manufacturer: Rich Solar
Product Line: Circuit Breaker
Model ID:
 RS-CB40
Certifications and Safety Ratings: tuv.jpg  etl.jpg  pv-cycle.jpg  mcs.jpg  iec.jpg  ul.jpg



Specifications




  • Rating: 25-250A, 30VDC; 48VDC
  • Interrupt Rating: 3000A @30VDC
  • Operating Temperature Rating: -25°F (-32°C) to 180°F (82°C)
  • Storage Temperature Rating: -30°F (-34°C) to 300°F (149°C)
  • Materials: Black UL-rated 94V0 thermoplastic. Thermoplastic elastomer stud insulators are provided on covered units with F-style (Surface-mount) bases.
  • Marking: Standard marking includes amp ratings and part numbers. Custom markings are also available
  • Termination: 1/4-28 or 3/8-16 threaded studs
  • Torque Rating: S 50 in-lbs (5.6N·m) max
  • Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6N·m) max. The threaded insert option has a max torque of 25 in-lbs (2.8N·m)
  • Ingress Protection Rating: IP67
  • Compliance: SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)



Available Now at Solaris – Trusted Distributor.



Datasheets

Document Type

logo-adobe-pdf-2.jpgSpecSheet

SpecSheet
