Canadian Solar MaxPower CS6U-325P 325W Poly Solar Panel

Hover over image to zoom

  • CS6U-325P
Canadian Solar
Discontinued
SKU: SLR-110-1070
Note: Ships LTL Freight Only
Condition: New
Weight: 49.40 LBS

 Product Description

Canadian Solar 325W Mono Solar Panel - CS6U-325P

Canadian Solar, 325W PV Module, T-4 (MC4-comparable), PV Wire, 40mm Silver Frame, 72 Cell Poly, 15A Fuse, 1000VDC, 297.4W PTC, CS6U-325P

MaxPower is Canadian Solar's series of robust solar panels with 72 solar cells. These panels have high system energy yield at low irradiance and low NOCT. Our stringent quality control system put our panels in the top ranking of California Energy Commission’s PVUSA Testing, leaving 12,471 other P-type silicon panels behind. Our enhanced 40 mm frames ensure the robustness of our panels for up to 5400 Pa load.

Canadian Solar, Inc., is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading PV project developer and manufacturer of solar modules with over 16 GW deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies worldwide.

Canadian Solar‘s modules use the latest innovative cell technology, increasing module power output and system reliability, ensured by 15 years of experience in module manufacturing, well-engineered module design, stringent BOM quality testing, an automated manufacturing process and 100% EL testing.

Features

  • Highlights - Excellent module efficiency of up to 16.97%. Outstanding low irradiance performance of up to 96.0%. High PTC rating of up to 91.55%. IP67 junction box for long-term weather endurance. Heavy snow load up to 5400 Pa, wind load up to 2400 Pa.



General Information
Manufacturer: Canadian Solar
Product Line:
MaxPower
Model ID:
CS6U-325P
Certifications and Safety Ratings: ce.gifcsa.jpg ul.jpg vde.jpg mcs.jpg pv-cycle.jpg



Mechanical Data

Technology: Polycrystalline (Poly)
Dimensions:

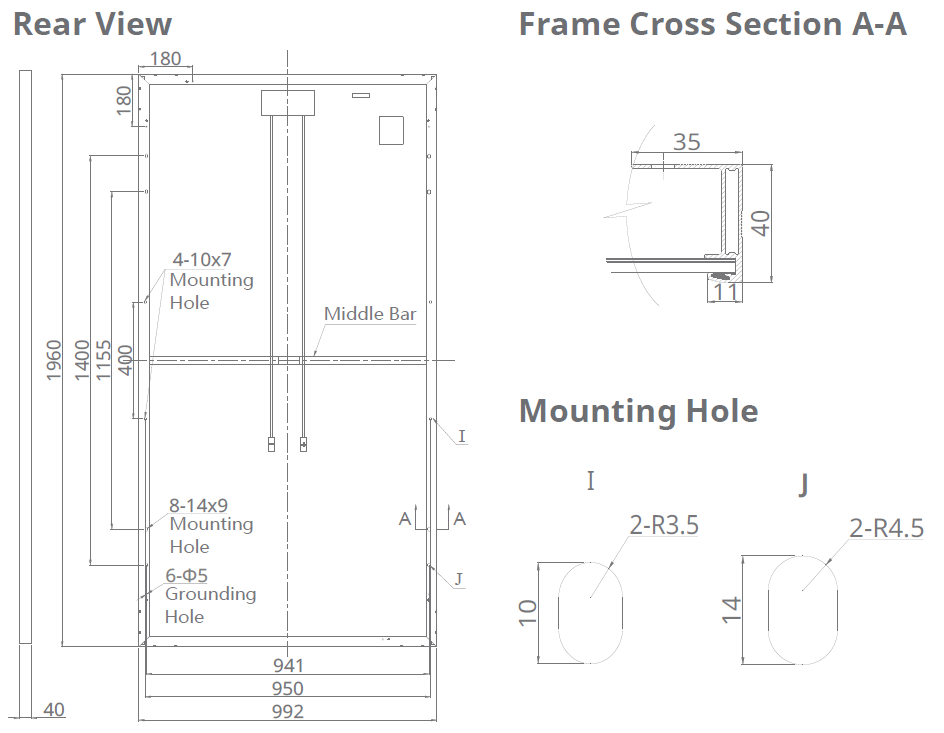

77.20 x 39.10 x 1.57 inches (CS6U-325P Dimensions)
Weight: 49.40 lbs
Cells: 72 Poly Cells (6x12)
Front Cover: 3.2mm Tempered Glass
Frame Material: Anodized Aluminum Alloy (Silver)
J-Box: IP67, 3 Diodes
Cable: 4 mm2 (IEC) or 4 mm2 & 12 AWG 1000V (UL), 1160 mm (45.7 in)
Connector: T4 Series or PV2 Series
Per Pallet: 26 pieces, 1400 lbs
Per Container (40' HQ): 624 Pieces
Module Efficiency: 16.72%
Operating Temperature: -40°C to +85°C



Electrical Data

Nominal Maximum Power (Pmax): 325 Watts
Optimum Operating Voltage (Vmp): 37.0 Volts
Optimum Operating Current (Imp): 8.78 Amps
Open Circuit Voltage (Voc): 45.5 Volts
Short Circuit Current (Isc): 9.34 Amps
Maximum System Voltage: 1000V (IEC) or 1000V (UL)
Module Fire Performance: Type 1 (UL 1703) or Class C (IEC 61730)
Max Series Fuse Rating: 15 Amps
Application Classification: Class A
Power Tolerance: 0-+5W



Datasheets

Document Type
logo-adobe-pdf-2.jpgCanadian Solar CS6U-325P Specs Specifications
logo-adobe-pdf-2.jpgCanadian Solar CS6U-325P Installation Guide Installation Guide
Warranty 10 Year Limited Product Warranty
Performance Guarantee 25 Year Limited Performance Warranty
logo-adobe-pdf-2.jpgCanadian Solar Warranty Warranty
