Canadian Solar CS6P-265P 265W Poly Solar Panel

Hover over image to zoom

  • CS6P-265P
Canadian Solar
MSRP: $359.06
$201.71 (You save $157.35)
SKU: SLG-110-1020
Note: Out of Stock
Condition: New
Weight: 39.70 LBS
Shipping: Calculated at checkout

Unavailable. See manufacturer for similar products.

 Product Description

Canadian Solar 265w Poly Solar Panel - CS6P-265P

265W PV Module, MC4-comparable, PV Wire, 12AWG, 40mm Black Frame on White backsheet, BOW, 60 Cell Poly, 15A Fuse, 1000VDC, 243.8W PTC

Canadian Solar's CS6P-265P is a robust solar module with 60 solar cells and can be used for on-grid or off-grid PV applications. High quality and reliability in all Canadian Solar modules is ensured by 14 years experience in module manufacturing, well-engineered module design, stringent BOM quality testing, an automated manufacturing process and 100% EL testing.

Canadian Solar's meticulous product design and stringent quality control ensure their modules deliver a higher PV energy yield in live PV system as well as in PVsyst's system simulation. Their in-house PV testing facilities guarantee all module component materials meet the highest quality standards possible.

Features

  • Higher Energy Yield & Faster ROI - Excellent module efficiency up to 16.47%. Positive power tolerance up to 5W. Outstanding performance at low irradiance (96.5%). Industry leading PTC rating of up to 92.00% on 60 cell modules.
  • Increased System Reliability & Secure Investment - Enhanced system performance stability with PID resistant technology. Long term system reliability with IP67 Junction Box. Robust frame to hold 5400 Pa load. Salt Mist, ammonia and blowing sand resistance, apply to seaside, farm and desert environment. Automotive industry quality management system (ISO16949) to our module MFG process to ensure product quality.
  • Extra Value to Customers - A global bankable brand, top ranking among module manufacturers by industry analysts. Anti-glare project evaluation (e.g., Airport installations). 25 Year linear performance warranty. 25 year performance warranty insurance. 10 Year product warranty on materials and workmanship.



General Information
Manufacturer: Canadian Solar
Product Line:
VINO
Model ID:
CS6P-265P
Certifications and Safety Ratings: ce.gifcsa.jpg ul.jpg vde.jpg mcs.jpg pv-cycle.jpg



Mechanical Data

Technology: Polycrystalline (Poly)
Dimensions:

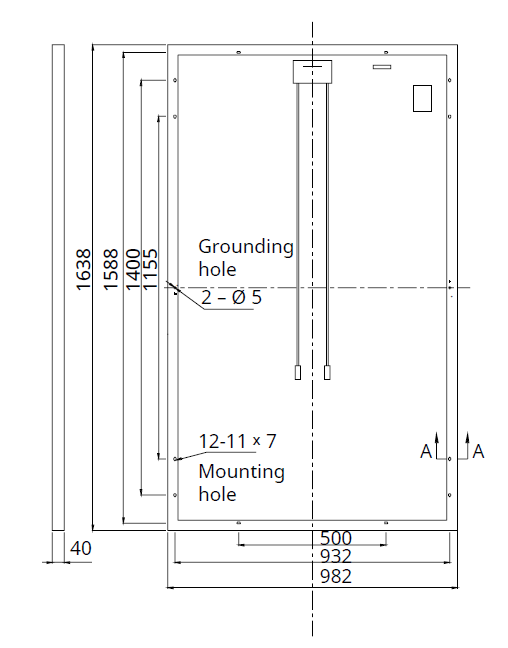

64.50 x 38.70 x 1.57 inches (CS6P-265P Dimensions)
Weight: 39.70 lbs
Front Glass: Tempered Glass (0.12 in)
Cells: 60 Poly Cells
Frame: Anodized Aluminum Alloy (Silver)
Back Sheet: (White)
Module Connector: MC4 Comparable
Output Cables:
PV Wire



Electrical Data

Nominal Maximum Power (Pmax): 265 Watts
Optimum Operating Voltage (Vmp): 30.6 Volts
Optimum Operating Current (Imp): 8.66 Amps
Open Circuit Voltage (Voc):

37.7Volts

Short Circuit Current (Isc): 9.23 Amps
Series Fuse Rating: 15 Amps
Operating Temperature: -40°C~ + 85°C
Module Efficiency: 16.47%
Maximum System Voltage: 600V/1000V
Power Tolerance: 0 / +5 W



Datasheets

Document Type
logo-adobe-pdf-2.jpgCanadian Solar CS6P-265P Specs Specifications
logo-adobe-pdf-2.jpgCanadian Solar CS6P-265P Manual User's Manual
Warranty 10 Year Limited Product Warranty
Performance Guarantee 25 Year Limited Performance Warranty
logo-adobe-pdf-2.jpgCanadian Solar CS6P-265P Warranty Warranty
