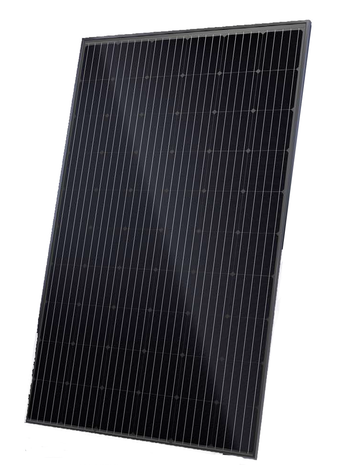

Loading... Please wait...| Canadian Solar 280w Mono Solar Panel - CS6K-280M All Black T4 |
|
Canadian Solar, 280W PV Module, PV Wire, T4 (MC4-comparable), 40mm Black Frame on White Backsheet, BOW, 60 Cell Mono, 15A Fuse, 1000VDC, 4BB, 253.9W PTC, CS6K-280M-T4-4BB CS6K-M modules are equipped with dark mono-crystalline cells, white colored backsheet and a black frame to enhance the aesthetic appearance of our standard mono modules. This product can improve the aesthetics of a rooftop. Canadian Solar, Inc. is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading PV project developer and manufacturer of solar modules with over 15 GW deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies worldwide. |
|
Features
|
| General Information | |
| Manufacturer: | Canadian Solar |
| Product Line: |
CS6K-M All Black T4 |
| Model ID: |
CS6K-280M All Black |
| Certifications and Safety Ratings: |
| Mechanical Data |
|
| Technology: | Monocrystalline (Mono) |
| Dimensions: |
65.00 x 39.10 x 1.57 inches (CS6K-280M All Black T4 Dimensions) |
| Weight: | 40.10 lbs |
| Cell Arrangement: | 60 (6x10) |
| Front Cover: | Tempered Glass (0.12 in) |
| Frame: | Anodized Aluminum Alloy (Black) |
| Junction Box: | IP67, 3 Diodes |
| Cable: | (4 mm² (IEC) or 4 mm² & 12 AWG 1000 V (UL) , 1000 mm (39.4 in) |
| Module Connector: | T4 (MC4 Compatible) |
| Per Pallet: |
26 Pieces, 1146.40 lbs |
| Per Container (40' HQ): | 728 Pieces |
| Operating Temperature: | -40°C to +85°C |
| Electrical Data |
|
| Nominal Maximum Power (Pmax): | 280 Watts |
| Optimum Operating Voltage (Vmp): | 31.50 Volts |
| Optimum Operating Current (Imp): | 8.89 Amps |
| Open Circuit Voltage (Voc): | 38.50 Volts |
| Short Circuit Current (Isc): | 9.43 Amps |
| Module Efficiency: | 17.11% |
| Maximum System Voltage: | 1000V (IEC) or 1000V (UL) |
| Module Fire Performance: | Type1 (UL 1703) or Class C (IEC 61730) |
| Max Series Fuse Rating: | 15 Amps |
| Application Classification: | Class A |
| Power Tolerance: | 0 / +5 W |
| Datasheets |
|
| Document | Type |
| Specifications | |
| Installation Guide |
|
| Warranty | 10 Year Limited Product Warranty |
| Performance Guarantee | 25 Year Limited Performance Warranty |
| Warranty |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 10 Year Limited Product Warranty
Performance Guarantee: 25 Year Limited Performance Warranty
