Canadian Solar 275w Mono Solar Panel - qUARTECH - CS6K-275M |
Canadian Solar, 275W PV Module, PV Wire, MC4-comparable, 40mm Black Frame on White Backsheet, BOW, 60 Cell Mono, 15A Fuse, 1000VDC, 4BB, No PTC, CS6K-275M Canadian Solar‘s new Quartech CS6K-275M modules have significantly raised the standard of module efficiency in the solar industry. They introduced innovative four busbar cell technology, which demonstrates higher power output and higher system reliability. Worldwide, our customers have embraced this next generation of modules for their excellent performance, superior reliability and enhanced value. Canadian Solar is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading manufacturer of solar modules and PV project developer with about 10 GW of premium quality module deployed around the world since 2001, Canadian Solar Inc. (NASDAQ:CSIQ) is one of the most bankable solar companies worldwide. |
Features
|
General Information | |
Manufacturer: | Canadian Solar |
Product Line: |
Quartech |
Model ID: |
CS6K-275M |
Certifications and Safety Ratings: | ![]() ![]() ![]() ![]() ![]() ![]() |
Mechanical Data |
|
Technology: | Monocrystalline (Mono) |
Dimensions: |

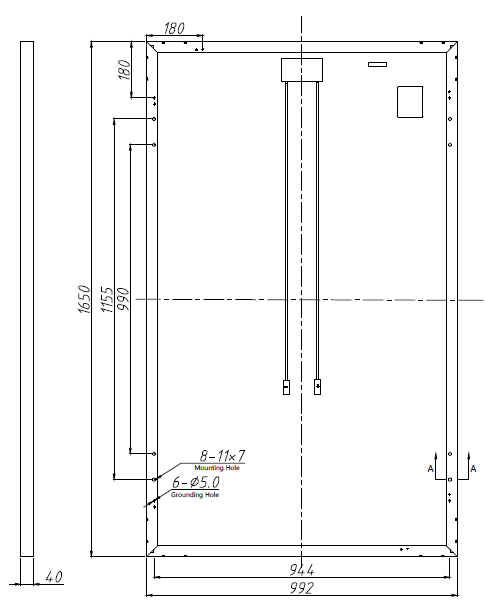

65.00 x 38.10 x 1.57 inches (CS6K-275K Dimensions) |
Weight: | 40.10 lbs |
Front Glass: | Tempered Glass (0.12 in) |
Cells: | 60 Mono Cells |
Frame: | Anodized Aluminum Alloy (Black) |
Back Sheet: | (White) |
Module Connector: | Friends PV2a (IEC), Friends PV2b (IEC / UL) |
Output Cables: |
4 mm2 (IEC), 4 mm2 & 12 AWG 1000 V (UL) , 1000 mm (39.4 in) |
Junction Box: | IP67, 3 diodes |
Electrical Data |
|
Nominal Maximum Power (Pmax): | 275 Watts |
Optimum Operating Voltage (Vmp): | 31.30 Volts |
Optimum Operating Current (Imp): | 8.80 Amps |
Open Circuit Voltage (Voc): | 38.30 Volts |
Short Circuit Current (Isc): | 9.31 Amps |
Series Fuse Rating: | 15 Amps |
Operating Temperature: | -40°C~ + 85°C |
Module Efficiency: | 16.80% |
Maximum System Voltage: | 1000V |
Power Tolerance: | 0 / +5 W |
Datasheets |
|
Document | Type |
![]() |
Specifications |
![]() |
Installation Guide |
Warranty | 10 Year Limited Product Warranty |
Performance Guarantee | 25 Year Limited Performance Warranty |
![]() |
Warranty |
Terms & Conditions |
|
Shipping: | Shipping Policy |
Returns: | Returns Policy |
Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 10 Year Limited Product Warranty
Performance Guarantee: 25 Year Limited Performance Warranty
