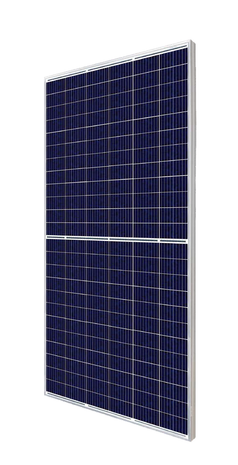

Loading... Please wait...| Canadian Solar 400w Bifacial Poly Solar Panel - CS3W-430MB-AG |
|
Canadian Solar, Bifacial 430W PV Module, 400mm (15.7”) 280mm (11”) PV Wire, T-4 Connector, 30mm Clear Frame on White Backsheet, 144 ½ Cells, Double Glass, Poly, 25A Max Fuse, 1000VDC, 403.8W PTC, 12/30 Warranty, CS3W-430MB-AG Canadian Solar is committed to providing high quality solar products, solar system solutions and services to customers around the world. No. 1 module supplier for quality and performance/price ratio in IHS Module Customer Insight Survey. As a leading PV project developer and manufacturer of solar modules with over 36 GW deployed around the world since 2001. |
|
Features
|
| General Information | |
| Manufacturer: | Canadian Solar |
| Product Line: |
BiHiKu |
| Model ID: |
CS3W-430MB-AG |
| Certifications and Safety Ratings: |
| Mechanical Data |
|
| Technology: | Bifacial Polycrystalline (Poly) |
| Dimensions: |
83.9 x 41.3 x 1.2 inches |
| Weight: | 62.2 lbs |
| Front/Back Glass: | 2.0mm Heat Strengthened Glass |
| Frame Material: | Anodized Aluminum Alloy |
| Junction Box: | IP68, 3 Bypass Diodes |
| Cable: | 4 mm² (IEC), 12 AWG (UL) |
| Electrical Data |
|
| Nominal Maximum Power (Pmax): | 430 Watts |
| Optimum Operating Voltage (Vmp): | 40.3 Volts |
| Optimum Operating Current (Imp): | 10.68 Amps |
| Open Circuit Voltage (Voc): | 48.3 Volts |
| Short Circuit Current (Isc): | 11.37 Amps |
| Module Efficiency: | 19.2% |
| Bifacial Efficiency Gain: | 20.2%, 425w (@ 5%), 21.2%, 473w (@10%), 23.1%, 516w (@20%), 559w 25% (@30%) |
| Datasheets |
|
| Document | Type |
| Specifications | |
| Installation Guide |
|
| Warranty | 10 Year Limited Product Warranty |
| Performance Guarantee | 30 Year Limited Performance Warranty |
| Warranty |
| Terms & Conditions |
|
| Shipping: | Shipping Policy |
| Returns: | Returns Policy |
| Payments: | We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders. |
Warranty: 10 Year Limited Product Warranty
Performance Guarantee: 30 Year Limited Performance Warranty
