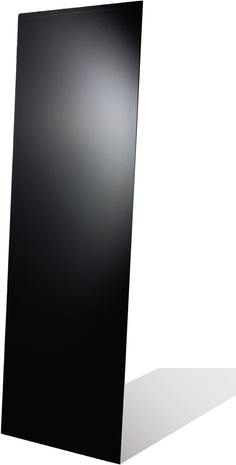

Stion Elevation 3 STO-145 Framed 145w Mono Solar Panel

STO-145

Hover over image to zoom

  • STO-145
Stion
Discontinued
SKU: STI-KU14643
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 37.00 LBS
  • Buy 4 - 23 and get 2% off
  • Buy 24 or above and get 5% off

 Product Description

Stion 145W Mono Solar Panel - Elevation 3 - STO-145

Stion, 145w Monocrystalline Solar Panel, 14 AWG Cable, MC4 Type Connectors, STO-145

Stion’s Elevation Series (STO/STL) modules represent the convergence of high-performance materials and processing with scalable manufacturing. Our panels have been optimized to provide the lowest cost of electricity, ease of installation, and reliable power output. Read more about our applications, performance, reliability standards and balance-of-system (BOS) partners.

Features

  • Superior Energy Yield - Up to 10% more energy than crystalline silicon in most climates. Industry leading temperature coefficient (-0.26%/°C) provides greater energy yield in most operating conditions. Proprietary cell and circuit design minimizes impact of shade and debris CEC listed, PTC/STC ratio of 92.9%
  • Leading Performance and Reliability - Potential Induced Degradation (PID) reisstant and free of Light Induced Degradation (LID) effects. Designed and tested to survive harsh conditions.
  • Certifications and Advanced Tests - IEC 61646 1000V, IEC 61730 1000V, CE. UL1703 1000V Class C Fire Rating (Class A Frame Spread), Fire Type 3. PID Free, IEC 61701 Salt Mist (Severity 6). ISO 9001:2008. CSI Eligible (CA-USA), CEC Listed (Australia), OGPE (Puerto Rico). Restriction of Hazardous Substances (RoHS) compliant.



General Information
Manufacturer: Stion
Product Line:
 STO
Model ID:
 STO-145
Certifications and Safety Ratings: rohs.jpg ce.gifetl.jpg iec.jpg  iso-plant.jpg pv-cycle.jpg



Mechanical Data

Technology: Monocrystalline (Mono)
Dimensions:
 25.80 x 65.20 x 1.40 inches (STO-145 Dimensions)
Weight: 37.00 lbs
Total Area: 11.68 ft²
Cable: PV Wire, 14 AWG Cable 39 3/8 Inches
Connectors: MC4 Type
Junction Box: IP67 Rated
Frame: Black Anodized Aluminum
Front Class: 3.2 mm Tempered
Back Glass: 2.1 mm Annealed Float
Mechanical/Wind Load: 2400 Pa (50 psf)



Electrical Data

Nominal Power (Pmax): 145 Watts
Module Efficiency: 13.3%
Vmpp: 61.00 Volts
Impp: 2.38 Amps
Voc: 79.60 Volts
Isc: 2.68 Amps
Series Fuse Rating: 7 Amps
Maximum System Voltage: 1000 VDC (UL & IEC)
Temperature Coefficient (Pmpp): -0.26%/°C
Temperature Coefficient (Voc): -0.24%/°C
Temperature Coefficient (Isc): 0.004%/°C
Factory Binning (W): +/- 2.5
NOCT: 45.6°C



Datasheets

Document Type
logo-adobe-pdf-2.jpgStion Elevation 3 STO-145 Specs Specifications
logo-adobe-pdf-2.jpgStion Elevation 3 STO-145 Installation Guide Installation Guide
Limited Power Warranty 90% at 10 Years, 80% at 25 Years
Workmanship 10 Year Workmanship Warranty
logo-adobe-pdf-2.jpgStion Elevation 3 STO-145 Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.

Stion - Stion Elevation 3 STO-145 Framed 145w Mono Solar Panel
Price:
Condition: new



 Warranty Information

Limited Power Warranty: 90% at 10 Years, 80% at 25 Years
Workmanship: 10 Year Workmanship Warranty
