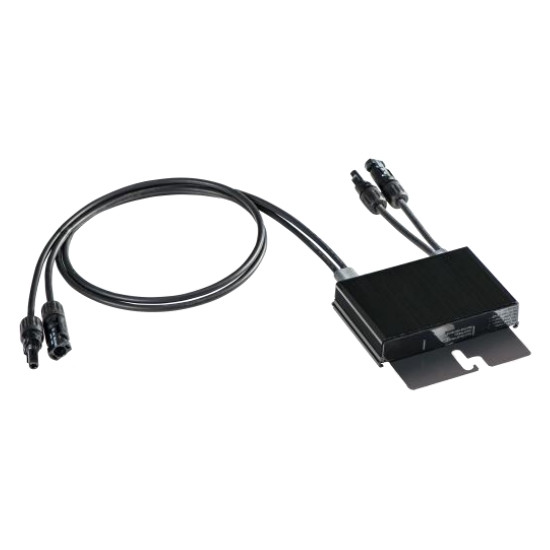

Solaredge P300-5NA4ARS 300W Power Optimizer

Hover over image to zoom

  • P300-5NA4ARS
  • Optimizers Installed
SolarEdge
RRP: $112.00
$64.00 (You save $48.00)
*May be eligible for a 30% federal tax credit
SKU:
SLG-565-0197
Condition:
New
Weight:
1.80 LBS
Shipping:
Calculated at checkout

 Product Description

SolarEdge 300W Optimizer - P300-5NA4ARS

Solaredge, Optimizer 300W, Add-On Box for one 60 cell module, 8-48V, 10A, MC4-compatible In, MC4-Compatible Out, 36" PV wire, UL 1000VDC, P300-5NA4ARS

The SolarEdge module add-on power optimizer is connected by installers to C-Si and thin-film modules. Ease of installation is completed by simply clipping the power optimizer to the module frame or by attaching it to the rail with a single screw. The add-on power optimizer is compatible with Zep Groove framed modules. The SolarEdge power optimizer attaches to the module frame with the certified Zep Compatible™ bracket without screws which reduces on-roof labor and mounting costs.

Features

  • EfficiencyUp to 25% more energy. Superior efficiency (99.5%). Mitigates all types of module mismatch losses, from manufacturing tolerance to partial shading. Flexible system design for maximum space utilization. Fast installation with a single bolt. Next generation maintenance with module-level monitoring. Module-level voltage shutdown for installer and firefighter safety.



General Information
Manufacturer: SolarEdge
Product Line:
Power Optimizer Series
Model ID:
P300-5NA4ARS
Certifications and Safety Ratings: ul.jpg iec.jpg  fcc.jpg rohs.jpg



Mechanical Data

Technology: Optimizer
Dimensions:
5.00 x 5.97 x 1.89 Inches
Weight: 1.70 lbs
Maximum Allowed System Voltage: 1000 VDC
Compatible Inverters: All SolarEdge Single Phase and Three Phase Inverters
Input Connector: MC4 Compatible
Output Wire Type/Connector: Double Insulated; MC4 Compatible
Output Wire Length: 3.00 Feet
Operating Temperature Range: -40 to +85°C
Protection Rating: IP68/NEMA6P
Relative Humidity: 0-100%
EMC Compliance: FCC Part15 Class B, IEC61000-6-2, IEC61000-6-3
Safety: IEC62109-1 (Class II Safety), UL1741
RoHS Compliance: Yes



Electrical Data

Rated Input DC Power: 300 Watts
Absolute Maximum Input Voltage: 18 VDC
MPPT Operating Range: 8-48 Volts
Maximum Short Circuit Current (Isc): 10 ADC
Maximum DC Input Current: 12.50 ADC
Maximum Efficiency: 99.50%
Weighted Efficiency: 98.80%
Maximum Output Current: 15 ADC
Maximum Output Voltage: 60 VDC
Safety Output Voltage per Power Optimizer: 1 VDC



Datasheets

Document Type
logo-adobe-pdf-2.jpgSolarEdge P300-5NA4ARS Specs Specifications
logo-adobe-pdf-2.jpgSolarEdge P300-5NA4ARS Installation Installation Guide
Warranty 25 Year Limited Product Warranty
logo-adobe-pdf-2.jpgSolarEdge P300-5NA4ARS Warranty Warranty
