SMA Sunny Boy SB240-US-99-10 250w Microinverter

Hover over image to zoom

  • SB240-US-99-10
SMA America
RRP: $317.00
$120.00 (You save $197.00)
*May be eligible for a 30% federal tax credit
SKU:
SLG-321-0193
Condition:
New
Weight:
2.90 LBS
Note:
This Item is a Clearance item and is NCNR*. Order while supplies last.
Shipping:
Calculated at checkout

 Product Description

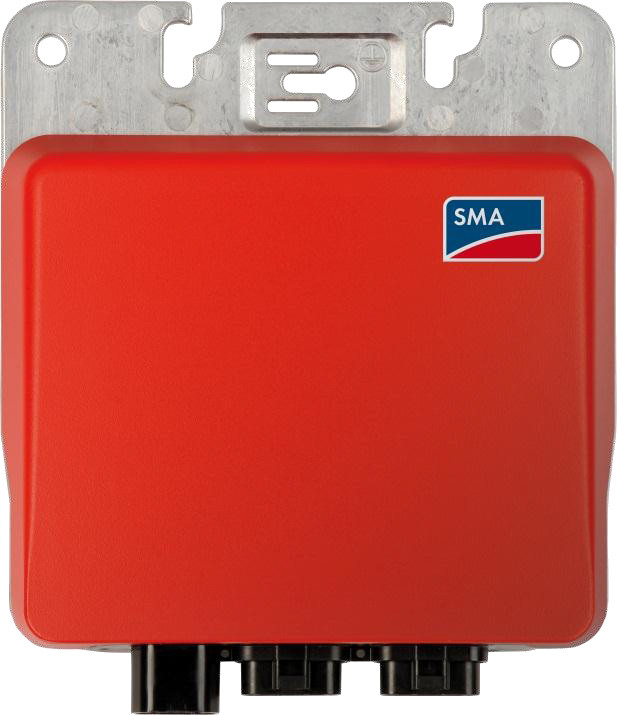

SMA 250W Microinverter - SB240-US-99-10

SMA, Sunny Boy SB240US Microinverter, 250W, 240VAC, 60Hz, 15-45VDC for 60 cell modules, DC socket in (add adapter), AC Female plugs in and out, 10 Yr Warr, Qty. 1, SB240-US-99-10, SPECIAL PRICING - LIMITED QUANTITY - ONLY WHILE SUPPLIES LAST

SMA’s Sunny Boy micro inverter system enhances design flexibility for installers in the U.S. and across the globe. It features industry-leading 96% CEC efficiency, simple installation, an innovative communications platform and is especially applicable for residential systems and rooftops with complex, shaded situations. Superior reliability is achieved with the groundbreaking introduction of the Sunny Multigate-US, which allows for fewer components exposed to heat stress under the module and greatly improves communication reliability versus other micro inverter systems. An improved cabling concept further elevates the Sunny Boy 240 from the competition by eliminating the need for a trunk cable.

Features

  • Reliability & Simple - Industry-leading 96% CEC efficiency. Multigate technology allows for reduced component count. Private band powerline for highly reliable communications. Overvoltage protection enhances durability. Ideal for complex roofs. Pre-assembled AC plugs and connection cables. Multiple DC connector options and daisy chain configuration.
  • Monitoring - The Sunny Multigate is a reliable, distortion-free solution. Module-level, customized reporting through Sunny Portal. Remote monitoring via the Internet or iPhone and Android apps.
  • Secuirty - 30 year history and strong financials create stability and ensure full warranty support. German engineered, assembled in the USA for unmatched quality. #1 ranked service offering.



General Information
Manufacturer: SMA America
Product Line:
Sunny Boy
Model ID:
SB240-US-99-10
Certifications and Safety Ratings: ul.jpg ieee.jpg fcc.jpg csa.jpg cec.jpg



Mechanical Data

Technology: Microinverter
Dimensions:
7.40 x 8.60 x 1.70 inches
Weight: 2.90 lbs
Operating Temperature Range:
-40 to +65°C
Topology: HF Transformer
Cooling Concept: Convection
Degree of Protection: Transformerless H5
Cooling Concept: NEMA 3R (According to IEC 60529)
Maximum Permissible Value for Relative Humidity: 100% (Non-Condensing)
DC Connection: Connector
AC Connection: Connector
Interface: Webconnect: N/A
Certificates and Approvals (More Available on Request): UL1741, UL1998, IEE 1547, FCC Part 15. Class A&B, IEC 62109-1/-2 (CAN/CSA C22.2 107.1-1)



Electrical Data

Input (DC)
Maximum DC PV Power: 250 Watts
Maximum Number of Micoinverters: N/A
Maximum Input Voltage: 45 Volts
MPP Voltage Range / Rated Input Voltage:
23V-32V/29.5 Volts
Minimum Input Voltage / StartVoltage:
15V/23V
Maximum Input Current: 8.5 Amps
Maximum Input Current Per String: 8.5 Amps
Number of Independent MPP Inputs: 1/1 (Unfused)
Output (AC)

Rated Power @240V: 240 Watts
Maximum Apparent AC Power:
240 VA
Nominal AC Voltage/Range: 2 x 120V/211V-264 V
AC Power Frequency/Range: 60 Hz/59.3 Hz-60.5 Hz
Rated Power Frequency/Rated Grid Voltage: 60 Hz/240 V
Maximum Output Current: 1 Amps
Power Factor at Rated Power: 1
Feed-In Phases/Connection Phases: 2/2x120 V Split Phase
Maximum Efficiency: 95.9%
CEC Efficiency: 96%



Datasheets

Document Type
logo-adobe-pdf-2.jpgSMA America SB240-US-99-10 Specs Specifications
logo-adobe-pdf-2.jpgSMA America SB240-US-99-10 Installation Installation Guide
Warranty 10 Year Factory Warranty
logo-adobe-pdf-2.jpgSMA America SB240-US-99-10 Warranty Warranty
