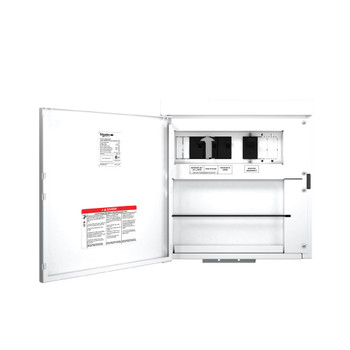

Schneider Electric Conext XW+ MINI-PDP Power Panel

Hover over image to zoom

  • RNW865101301
Schneider Electric
MSRP: $1,016.00
$610.30 (You save $405.70)
SKU: ALG-030-01185
Condition: New
Weight: 28.20 LBS
Shipping: Calculated at checkout

 Product Description

Schneider Electric Power Distribution Panel - RNW865101301

Schneider Electric, CONEXT XW+,MINI-PDP, POWER DISTRIBUTION PANEL For One Inverter ONLY, NOT Expandable,1-POLE 250A 160VDC, 3,2-POLE 60A AC Breakers & By-Pass, 120-240V, RNW865101301

Conext XW+ Power Distribution Panels (XW+ PDP and Mini PDP) are factory-wired and labeled to support the integration of multiple Conext XW+ inverter/chargers and Conext MPPT Solar Charge Controllers with a single battery bank. The XW+ PDP and Mini PDP ships with breakers, bus bars and cables to install a single XW+ inverter/charger. With space to add wiring and breakers, a single XW+ PDP and Mini PDP supports one XW+ inverter/charger, a diesel generator and either a MPPT 80 600 or MPPT 60 150 Solar Charge Controller. The XW+ PDP and Mini PDP supports single-phase, split phase, or three-phase installations. A field-reversible door and multiple conduit knockout entry points allow for the XW+ PDP and Mini PDP enclosure to be mounted and configured on either side of the inverter/charger.

XW+ Power Distribution Panels are designed to save significant time and money during installation, when compared to custom solutions. A mounting bracket and Conext XW+Conduit Box are also supplied with each XW+ PDP and Mini PDP.

Features

  • Higher ROI - Integrate multiple XW+ inverter chargers and MPPT Solar Charge Controllers with a single battery bank. Repeatable standard installation that saves time and money.
  • Flexible & Easy to Service - Single-phase split-phase or three phase systems. Multiple field configurable conduit entry points on the back, bottom, top and sides. DIN Rail mounting for QOU type and Multi-9 AC breakers. Breaker configuration allows XW+ inverter/chargers to be AC bypassed for servicing. Field-reversible door panel allows for visual inspection.
  • Easy to Install - Wall mount with included bracket. Add additional XW+ inverter chargers with Conext XW+ connection kit.



General Information
Manufacturer: Schneider Electric
Product Line:
Conext SW+
Model ID:
RNW865101301
Certifications and Safety Ratings: ul.jpg csa.jpg



Mechanical Data

Technology: Battery Inverter
Dimensions:
18.50 x 16.00 x 8.90 inches
Weight: 28.20 lbs
Included: XW+ Mini-PDP enclosure with a field reversible panel door and integrated wall mounting bracket. Three 60A, 120/240VAC, two-pole, Square-D QOU260, DIN-rail mounted AC breakers for AC input, bypass and AC load (factory-installed), pluso ne additional expansion position for two pole AC breaker, type QOU260. Mini-PDP AC Cabling is pre-wired/pre-measured for easy installation to XW+ unit.
Additional Components: One GJ 250A 160VDC DC breaker installed. Two expansion positions for charge controller DC breakers (PV array or battery). Termination lugs for ground, common and battery connections. Integrated DC busbars for direct connection to XW+ DC terminals. 3/8" hardware for connection of DC cables to busbars. Cable ties for cable management. Quick start guide. Additional breaker labels. Plastic knockout bushings for connection between Mini-PDP and XW/XW+ unit. Document holder. Sized for easy cable installation and management.



Datasheets

Document Type
logo-adobe-pdf-2.jpgSchneider Electric RNW86101301 Specs Specifications
logo-adobe-pdf-2.jpgSchneider Electric RNW865101301 Installation Guide Installation Guide
Warranty 2 Year Limited Warranty
logo-adobe-pdf-2.jpgSchneider Electric RNW865101301 Warranty Warranty



Terms & Conditions

Shipping: Shipping Policy
Returns: Returns Policy
Payments: We accept: Visa, MasterCard, Discover, and American Express. We also accept checks, direct deposit and wire transfers for large orders.
