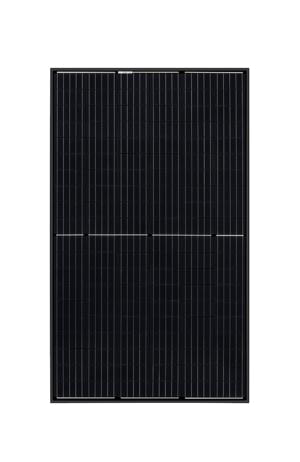

REC TwinPeak2 REC280TP2-BLK2 280w Poly Solar Panel

Hover over image to zoom

  • Image 1
REC Group
MSRP: $295.00
$165.00 (You save $130.00)
SKU: ALG-011-02610
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 40.80 LBS

 Product Description

REC Group 280w Poly Solar Panel - TwinPeak2 BLK2 - REC280TP2-BLK2

REC Group, Poly, 280w, PV Module, Black on Black, MC4 Type, REC280TP2-BLK2

REC TwinPeak2 BLK 2 Series solar panels feature an innovative design with high panel efficiency and power output, enabling customers to get the most out of the space used for the installation. Combined with industry-leading product quality and the reliability of a strong and established European brand, REC TwinPeak2 BLK2 panels are ideal for residential and commercial rooftops worldwide.

For businesses of all types and sizes, whether the system is a rooftop installation or ground-mount, REC TwinPeak solar panels have an innovative design with high panel efficiency and power output. This means that you can enjoy maximum power in the space available. In parallel, REC TwinPeak panels can deliver a system with the required power using fewer panels.

REC TwinPeak features an innovative design with high panel efficiency and power output, enabling you to get the most out of the space available – helping to lower your energy bills and shorten the payback time through increased yield and lower costs.

Features

  • More Power Output per M2 - The advanced technologies packed into the REC TwinPeak panels provide you with more power output for every square meter of panels installed, compared to standard 60-cell panels on a multicrystalline (poly) platform. The REC TwinPeak 2 Series delivers at least 20 Wp more per panel.
  • More Performance in Shaded Conditions - Panels from the REC TwinPeak family have a unique “twin” design, which enables them to generate electricity even when they are partially shaded. Over time, you get a higher yield from your installation.
  • More Cost Efficient - By delivering more power per square meter, you need fewer REC TwinPeak panels to generate the same power. This means quicker installation times and the need for fewer components such as clamps and racks. All of which reduces your overall costs, shortening the payback time.



General Information
Manufacturer: REC Group
Product Line:
TwinPeak2 BLK2 Series
Model ID:
REC280TP2-BLK2
Certifications and Safety Ratings: ce.gifvde.jpg csa.jpg iec.jpg iso.jpg



Mechanical Data

Technology: Polycrystalline (Poly)

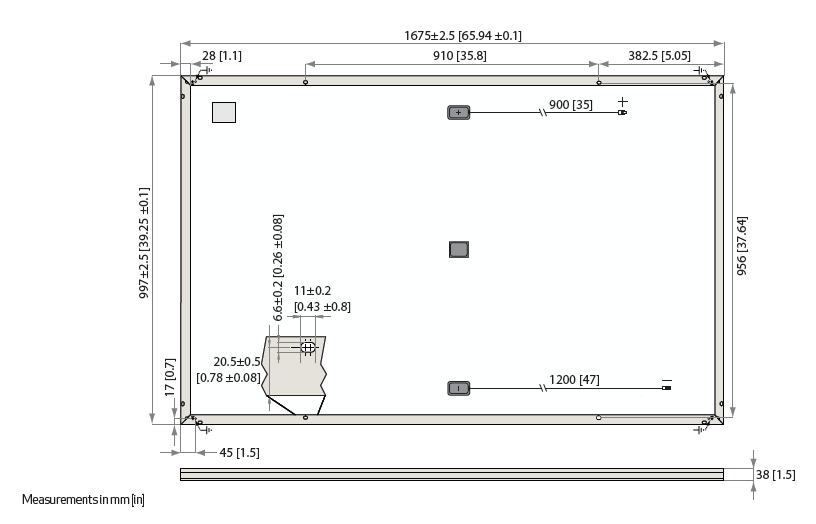

Dimensions:
65.94 x 39.25 x 1.50 inches (REC280PT2-BLK2 Dimensions)
Weight: 40.80 lbs
Area: 1.67 m²
Cell Type: 120REC HC Multicrystalline, 6 Strings of 20 Cells
Glass: 3.2mm Solar Glass with Anti-Reflection Surface Treatment
Back Sheet: Highly Resistant Polyester Polyolefin Construction (Black)
Frame: Anodized Aluminum (Black)
Junction Box:
IP67 Rated, 3-Part with Bypass Diodes, (4mm²) Solar Cable, Toglin TL-Cable01SFR (4 mm²)
Operational Temperature: -40°C to +85°C
Maximum System Voltage: 1000V
Maximum Snow Load: 550kg/m² (5400 Pa)
Maximum Wind Load: 244kg/m² (2400 Pa)
Maximum Series Fuse Rating: 25 Amps
Maximum Reverse Current: 25 Amps



Electrical Data

Nominal Power (Pmpp): 280 Watts
Watt Class Sorting (W): 0/+5
Nominal Power Voltage (Vmpp): 31.80 Volts
Nominal Power Current (Impp): 8.82 Amps
Open Circuit Voltage (Voc): 38.40 Volts
Short Circuit Current (Isc): 9.39 Amps
Panel Efficiency: 16.80%



Datasheets

Document Type
logo-adobe-pdf-2.jpgREC Group REC280TP2-BLK2 Specifications Specifications
logo-adobe-pdf-2.jpgREC Group REC280TP2-BLK2 Installation Guide Installation Guide
Warranty 20 Year Product Warranty
Performance Guarantee 25 Year Linear Power Output Warranty
logo-adobe-pdf-2.jpgREC Group REC280TP2-BLK2 Warranty Warranty
