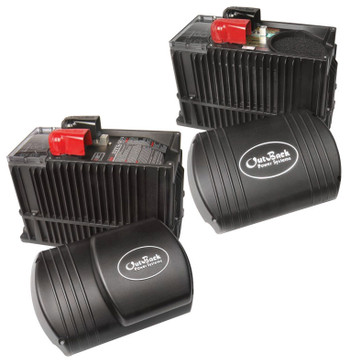

OutBack VFX3524M 3500w Battery Inverter

Hover over image to zoom

  • VFX3524M
OutBack Power
MSRP: $2,671.99
$1,868.00 (You save $803.99)
SKU: ALG-030-04156
Note: Out of Stock - See manufacturer for similar products.
Condition: New
Weight: 54.00 LBS

 Product Description

Outback Power 3500W Battery Inverter - VFX3524M

Outback, VFX3524M battery inverter, 3500W, 120VAC, 60Hz, 50A Transfer, 24VDC, Sinewave, Off Grid, 5 Yr Warr, 85A Charger, with BTS & Switched Ground, VFX3524M

OutBack Power’s M-Series inverter/charger provides true sinewave power output and intelligent battery charging. The M-Series inverter/charger is modularly expandable to meet your power needs, providing a complete power conversion solution; it also incorporates a DC to AC inverter, battery charger, and an AC transfer switch, which combines 30 amp pass through and neutral/ground switching.

All OutBack Power inverter/chargers produce virtually distortion free sinewave AC power for onboard electronics like sensitive home theater equipment and microwaves with minimal RF interference. Change to: Industry leading surge power starts heavy loads like air conditioning or pumps.

Power factor corrected battery charging gets the most out of your shore power or generator while maximizing the life and performance of your batteries. Ultra fast AC transfers switch, with neutral/ground switching, seamlessly transfers shore power without dropping loads. Modular expandability is achieved modular expandability is achieved through networked communications, allowing your inverter system to grow with your power consumption needs.

The OutBack Power M-Series inverter/charger is the superior choice when you need a reliable, powerful, modular, and true sinewave inverter/charger.

Features

  • Improved Load - True sinewave output. High operating efficiency. UL458 certified.
  • Safety - Intelligent battery charging. Modular system architecture. "Bug Proof" chassis. Corrosion resistant internal components.
  • Reliability - Field serviceable. Neutral/Ground switching. Integrated network communications. Standard 5 year warranty.



General Information
Manufacturer: Outback Power
Product Line:
M-Series
Model ID:
VFX3524M
Certifications and Safety Ratings: ul.jpg etl.jpg



Mechanical Data

Technology: Battery Inverter
Dimensions:
12.00 x 8.25 x 16.25 inches
Weight: 54.00 lbs
Certifications:
EL Listed to UL458
Temperature Range: 0 to 50°C (Power Derated Above 25°C)
Recommended Battery Types: Flooded Led Acid, AGM, Gel
Recommended Battery Cable: #4/0 AWG
Minimum Recommended DC Breaker: OBDC-250



Electrical Data

Nominal DC Input Voltage: 24VDC
Continuous Output Power at 25°C: 3500 VA
AC Voltage/Frequency: 120VAC/60Hz
Continuous AC RMS Output at 25°C:
29.2AAC
Idle Power:
Full: ~21W; Search: ~2.6W
Typical Efficiency: 92%
Total Harmonic Distortion: Typical: 2%; Maximum: 5%
Output Voltage Regulation: ± 2%
Maximum Output Current: Peak (1 ms): 70AAC; RMS (100 ms): 50AAC
AC Overload Capability: Surge (100 ms): 6000VA; 5 Sec: 5000VA; 30 Min: 4000VA
AC Input Current Maximum: 30AAC
AC Input Voltage Range (MATE Adjustable): 80 to 150 VAC
AC Input Frequency Range: 54 to 66 Hz
DC Input Voltage Range: 21.0 to 34.0VDC
Continuous Battery Charge Output: 85ADC



Datasheets

Document Type
logo-adobe-pdf-2.jpgOutback Power VFX3524M Specs Specifications
logo-adobe-pdf-2.jpgOutback Power VFX3524M Installation Guide Installation Guide
Warranty 5 Year Standard Warranty
logo-adobe-pdf-2.jpgOutback Power VFX3524M Warranty Warranty
