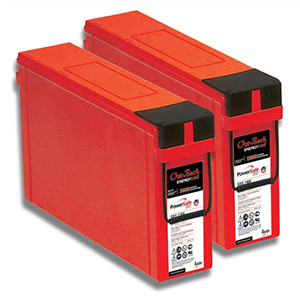

OutBack EnergyCell 200GH Float AGM 12V 200Ah Battery

Hover over image to zoom

  • 200GH
OutBack Power
MSRP: $953.00
$662.10 (You save $290.90)
SKU: ALG-040-01173
Note: 2-4 Week Lead Time. Ships LTL Freight Only.
Condition: New
Weight: 116.00 LBS
Shipping: Calculated at checkout

 Product Description

Outback 12V Float Service AGM Battery - EnergyCell 200GH

Outback, EnergyCell 200GH Float Service AGM for GridHybrid Battery Back-up Applications, 12V, 200AH Front Terminal VRLA battery, 200GH

The EnergyCell GH Valve Regulated Lead Acid (VRLA) battery is designed for Grid/Hybrid storage applications. EnerSys SBS EON technology incorporates TPPL AGM (Thin Plate Pure Lead Advanced Glass Mat) which allows for greater shelf life, extended float service life in optimal operating conditions, and higher energy density. The EnergyCell GH also features front terminal access with threaded copper inserts providing low maintenance and increased safety.

OutBack’s new EnergyCell Valve Regulated Lead Acid (VRLA) 200GH batteries are designed to support critical power applications in Grid/Hybrid systems where renewable sources normally augment grid power, but the power-conversion system switches to off-grid operation during emergencies or outages. EnerSys SBS EON technology incorporates TPPL AGM (Thin Plate Pure Lead Advanced Glass Mat) which allows for greater shelf life, extended float service life in optimal operating conditions, higher energy density, and superior discharge and charge performance.

The EnergyCell GH battery series is designed for Grid/Hybrid and AC-coupled storage applications; for deep-cycle applications OutBack EnergyCell RE batteries are recommended.

Features

  • Safety - Valve regulated lead acid battery. Front terminal access for ease of installation and maintenance. UL recognized component.
  • Efficient - 18-month shelf life at 25°C. EnerSys SBS EON technology gives higher energy density.
  • Flexible - Designed for Grid/Hybrid and AC coupled renewable energy storage applications. Up to 4-year full replacement warranty. Wide operating temperature range.



General Information
Manufacturer: Outback Power
Product Line:
EnergyCell
Model ID:
200GH
Certifications and Safety Ratings: ul.jpg



Mechanical Data

Technology: Float Service AGM
Dimensions:
11.10 x 22.10 x 4.90 inches
Weight: 116.00 lbs
Operating Temperature Range:
-40 to +50°C
Self Discharge: Battery can be stored up to 18 months at 77°F (25°C) before a freshening charge is required. Batteries stored at temperatures greater than 77°F (25°C) will require recharge sooner than batteries stored at lower temperatures.
Temp Compensation Factor (Charging): ±4mV per Degree C per Cell (2V)
Terminal: Threaded Copper Alloy Insert Terminal to Accept ¼”-20 UNC Bolt
Terminal Hardware Initial Torque: M6 = 80 in-lbs (9.0 Nm)



Electrical Data

Cells Per Unit: 6
Voltage Per Unit:
12VDC
Optimal Operating Temp Range: 20°C
Float Charging Voltage: 13.62VDC / Unit Average at 25°C
Equalization and Cycle Service Charging Limits: 14.40VDC / Unit Average at 25°C
Ampere Hour Capacity to 1.75 Volts Per Cell at 25°C
1 Hour Rate: 120Ah
3 Hour Rate: 148.5Ah
4 Hour Rate: 154.8Ah
5 Hour Rate: 159Ah
8 Hour Rate: 168.8Ah
12 Hour Rate: 176.40Ah
20 Hour Rate: 191Ah
24 Hour Rate: 189.6Ah
100 Hour Rate: 200Ah



Datasheets

Document Type
logo-adobe-pdf-2.jpgOutback EnergyCell 200GH Specs Specifications
logo-adobe-pdf-2.jpgOutback EnergyCell 200GH Manual Users Manual
Warranty Up to 4 Year Full Replacement Warranty
logo-adobe-pdf-2.jpgOutback EnergyCell 200GH Warranty Warranty
