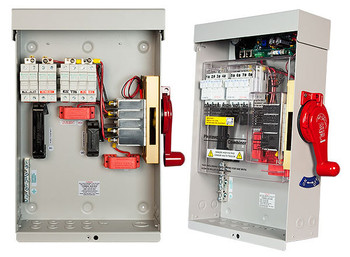

Midnite Solar MNPV16HV-DLTL-4X Disconnect Combiner Box

Hover over image to zoom

  • MNPV16HV-DLTL-4X
MidNite Solar
MSRP: $1,832.00
$1,028.10 (You save $803.90)
SKU: SLR-510-0230
Note: Out of Stock
Condition: New
Weight: 18.00 LBS

 Product Description

MidNite Solar Disconnect Combiner Box - MNPV16HV-DLTL-4X

Midnite Solar, Disconnect Combiner, two Dual 4x15A Fused inputs (with 16 fuses), two Dual switched Pos/Neg disconnect, 600VDC, NEMA 4X, Birdhouse Compatible, MNPVHV16-DLTL-4X

4 strings into the combiner with 2 separate 30 amp strings out. Specifically designed for the new dual channel MPPT on transformer-less inverters. This configuration will break the Positive and Negative of 2 separate 600vdc strings.

The difference between the regular Disco combiner and the DLTL version is that the MNPV8HV-Disco-4X is made for a single 8 string inverter, two 4 string inverters or one 4 string transformerless where as the DLTL is set up for 4 strings in and 2 strings out for Dual MPPT on transformerless.

Features

  • Highlights - Rapid shutdown system compliant. Birdhouse compatible. Type 3R aluminum enclosure (No Rust). Number of Fuse Holders (MNTS) installed - 8. 8 - 15 amp fuses installed. Current Rating - 60A. Max. Output Wire Size - 2/0. Output Circuits - 2. 90 degree C connections. See through dead front and color coded bus bar guards. #10 AWG wire internally. Meets 2014 NEC 690.12. Warranty - 5 yrs. Listed by ETL for US & Canada. Made in the USA.
  • Hardware Includes - Four - Strain Reliefs. Four - 1/2" LOCKNUTS. One BLUE WRENCH (MNWRENCH).



General Information
Manufacturer: MidNite Solar
Product Line:
PV Combiners
Model ID:
MNPV16HV-DLTL-4X
Manufactured In: United States of America
Certifications and Safety Ratings: ul.jpg etl.jpg ce.gif fcc.jpg made-in-america.png



Mechanical Data

Technology: Combiner Box with Envoy
Dimensions:
24.00 x 6.00 x 19.00 inches
Weight: 18.00 lbs
Maximum Volts: 600 Volts
Fuse/Fuse Holders: Sixteen 15 Amps
Dead-Front:
Yes
Lug Temperature Rating: 90°C
Strain Reliefs & Hole Plugs: Yes
Enclosure Rating:
Type 4X
Enclosure: Powder Coated Aluminum
Number of PV Circuits: 2+ & 2 - Two Strings Combined Each
Maximum String Fuse Rating: 20 Amp
Output Switch Rating: 100 Amp Switch
Positive Feed-Back: Yes
Optional Power Supply Board (MNDiscoPSB): Yes
Strings In/Out: Eight/Two
Lockable: Yes
Listed to UL & CSA: UL1741 & C22.2
Output Wire Range: 14 to 2/0 AWG
Wire Range for String Input: 14 to 10 AWG
Mounting Options and Angle: Any Orientation
