MidNite Solar MNBRAT PWM 30A Charge Controller

Hover over image to zoom

  • MNBRAT Side
  • MNBRAT
  • MNBRAT Diagram
MidNite Solar
MSRP: $176.00
$96.00 (You save $80.00)
SKU: ALG-020-02435
Condition: New
Weight: 1.50 LBS
Shipping: Calculated at checkout

 Product Description

MidNite Solar 30A PWM Charge Controller - MNBRAT

Midnite Solar, Charge Controller, 20A with 10A load control, 30A charger without load control, NEMA3R, Qty. 1, MNBRAT

The Brat is simply the most versatile solar controller in its class. The Brat is a finely-tuned solar PWM charger capable of providing up to 30 Amps of charging current, with class-leading lighting and load control features including one-of-a-kind Solar Clock. Rain-proof out of the box, and supporting dead-battery charging and low-voltage load disconnect, The Brat is perfect for outdoor, marine, RV, and unattended remote applications. The Brat features include temperature-compensated charging, manual and 30-day automatic equalize, and at an affordable price too!

The MidNite BRAT is a PWM charge controller with either a 20 A charger and 10 A load control, or a 30 A charger without load control. Usable with 36-cell modules to charge 12 or 24 VDC battery banks, with three or four-stage charging. It has no relays, fans or external heat sink, and is in a clear polycarbonate NEMA 3R outdoor enclosure with 4 LED’s to display system status. The 10 A load control can be used as a low voltage disconnect or a 16-position lighting control. The controller’s operating temperature range is -40 ºC to +60 ºC but the controller will automatically de-rate at temperatures above 25 ºC. Ambient temperature sensing for charge voltage compensation is internal to these models. Dimensions are 7” H x 6” W x 2.4” D. 2-year warranty. Made in U.S.A.

Features

  • Flexible & Versitile - Selectable charging modes - 20A charger with 10A load control, 30A charger without load control. LED’S - Four LED’s for Bulk, Float, Load On and Low Battery. Patterned blinking LED’s provide feedback about fault conditions. Load circuit - A unique feature of the Brat is the load circuit. This versatile feature can be used for many purposes including running well pumps, electric fences, or billboard lights in remote areas. Compact design - We understand space can be a struggle in a boat or RV. With that in mind we kept the physical design of the Brat compact ​without sacrificing performance.
  • Unique Features - Customizable lighting controller - The Brat sports a highly customizable 16 position rotary switch lighting controller. Nominal Battery Voltage - 12 or 24V - Selectable. Built in Arlingtin, WA - USA.
  • Safe & Reliable - No relays, no fans, no external heat-sink. Sealed for harsh environments - All Brats are weather proof, sealed in a clear UV stabilized polycarbonate housing! (Type 3R/IP55). Repairable - Field repairable printed circuit board (by a qualified technician). Type 3R EnclosureP/V Input voltage maximum - 60 volts. 10A maximum load circuit rating.



General Information
Manufacturer: MidNite Solar
Product Line:
The Brat
Model ID:
MNBRAT
Manufactured In: United States of America
Certifications and Safety Ratings: ul.jpg etl.jpg ce.gif fcc.jpg made-in-america.png



Mechanical Data

Technology: Pulse Width Modulation (PWM)
Dimensions:

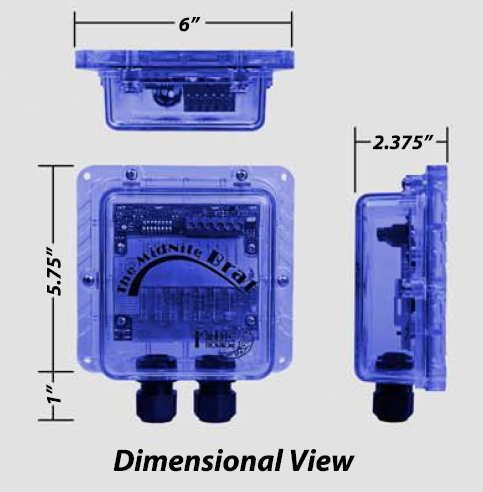

6.75 x 6.00 x 2.38 inches (MNBRAT Dimensions)
Weight: 1.50 lbs
Casing: (Clear)
Display: Four LEDs for Bulk, Float, Load On and Low Battery/Low-Voltage Disconnect
Environmental Rating: Outdoor - Weather Proof, Type 3R/IP55



Electrical Data

Input Voltage: Up to 60 VDC
Nominal Battery Voltage: 12V - 24 Volts
Maximum Charger Current: 30A (Charger Only), 20A (With Load Controller)
Charging Regulation: Bulk, Absorb, Float, & Equalization
Equalization Charging: 15/30 Volts
Battery Temp Compensation: 150 Volts
Maximum Battery Voltage: Automatic
Load Circuit Rating: 10 Amps
Operating Temperature: -40°C + 60°C (Controller Auto Derate above + 25°C)



Datasheets

Document Type
logo-adobe-pdf-2.jpgMidNite Solar MNBRAT Specs Specifications
logo-adobe-pdf-2.jpgMidNite Solar MNBRAT Installation Guide Installation Guide
Warranty 5 Year Standard Warranty
logo-adobe-pdf-2.jpgMidNite Solar MNBRAT Warranty Warranty
