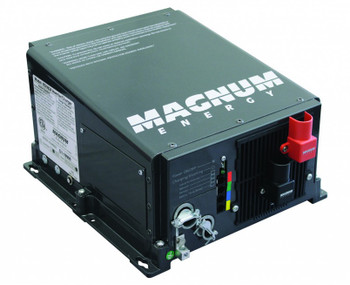

Magnum RD4024E 4000w Battery Inverter

Hover over image to zoom

  • RD4024E
Magnum Energy
Unavailable
SKU: SLR-320-0042
Note: 2-4 Week Lead Time
Condition: New
Weight: 55.00 LBS

 Product Description

Magnum 4000W Battery INVERTER - RD4024E

Magnum, RD4024E battery ROW Inverter, 4000W, 230VAC, 50Hz, 30A Transfer, 24VDC, Modified Sine, Off Grid, 2 Yr Warr, 105A Charger, with BTS, RD4024E

The RD1824 (RD Series) Inverter / Charger is a new generation modified sine wave inverter designed specifically for renewable energy use. The RD Series is powerful, easy-to-use, and best of all, cost effective.

Features

  • Compatibility - Power Factor Corrected (PFC) Charger: Magnum Energy's PFC charger is built into all of their inverter chargers. It uses less energy from a generator than a standard charger – using 25-30% less AC current than standard chargers.
  • Safety - The RD Series is ETL Listed to the stringent requirements of UL 1741 (USA only), ensuring that the inverter is safe and reliable.
  • User Friendly Install the RD Series in four easy steps: simply connect the inverter’s output to your distribution circuits or electrical panel, connect your power cable (AC) to the inverter’s easy-to-reach terminal block, connect the batteries, and switch on the power.



General Information
Manufacturer: Magnum Energy
Product Line:
RD-E Series
Model ID:
RD4024E
Certifications and Safety Ratings: ul.jpg etl.jpg csa.jpg



Mechanical Data

Technology: Battery Inverter
Dimensions:
13.75 x 12.65 x 8.00 inches
Weight: 55.00 lbs
Maximum Operating Altitude: 15,000 Feet
Operating Temperature: -20 to +60°C
Mounting: Shelf (Top or Bottom Up) or Wall
Operating Humidity: 0 to 95% RH Non-Condensing
Transfer Relay Capability: 30 AAC
Five Stage Charging Capability: Bulk, Absorb, Float, Equalize (Requires Remote), and Battery Saver
Battery Temperature Compensation: 15 Foot Battery Temperature Sensor Standard
Internal Cooling: 0 to 120 CFM Variable Speed
Overcurrent Protection: Two Overlapping Circuits
Overtemperature Protection: On Transformer MOSFETS, and Battery



Electrical Data

Input Battery Voltage Range: 18 to 32 VDC
Nominal AC Output Voltage: 230 VAC ± 5%
Output Frequency and Accuracy: 50 Hz ± 0.1 Hz
Continuous Power Output at 25°C:
4000 VA
Maximum Continuous Input Current: 267 ADC
Inverter Efficiency: 89%
Transfer Time: 20 MS
Search Mode: <8 Watts
No Load: 32 Watts
Waveform: Modified Sine Wave
Charger Continuous Output at 25°C: 105 A
Charger Efficiency: 85%
Charger Power Factor: > 0.95
Charger Input Current at Rated Output: 16 AC Amps



Datasheets

Document Type
logo-adobe-pdf-2.jpgMagnum Energy RD4024E Specifications Specifications
logo-adobe-pdf-2.jpgMagnum Energy RD4024E Installation Manual Installation Guide
Warranty 2 Year Limited Warranty
logo-adobe-pdf-2.jpgMagnum Energy RD4024E Warranty Warranty
