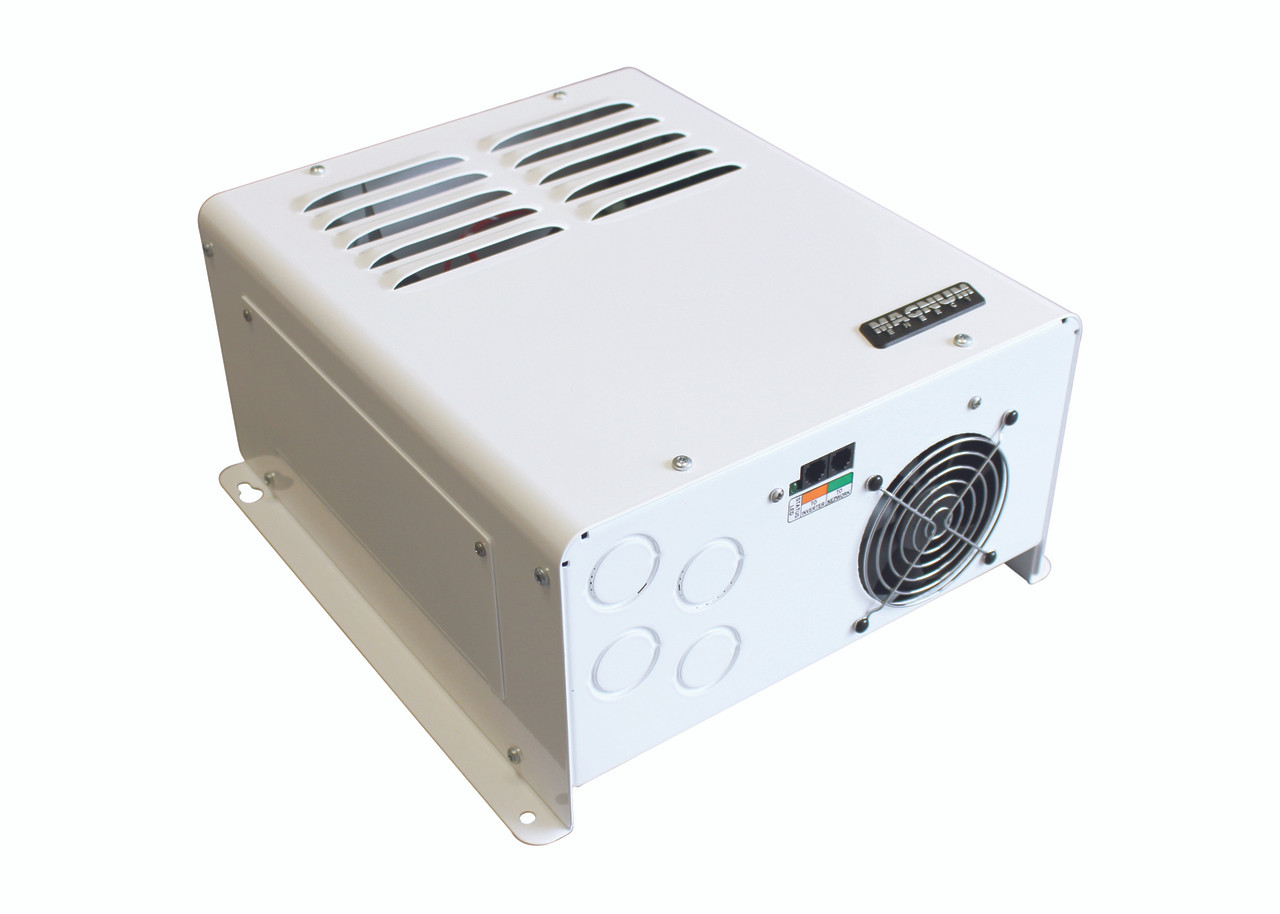

Magnum ACLD-40 4kW Load Diversion Controller

Hover over image to zoom

  • ACLD-40
Magnum Energy
Unavailable
SKU: SLR-520-0154
Note: Out of Stock
Condition: New
Weight: 23.00 LBS

 Product Description

Magnum 4kW AC Load Diversion Controller - ACLD-40

Magnum, AC Load Diversion Controller, 4kW, 240VDC, ACLD-40

The ACLD monitors the battery voltage of a backup battery bank, and if the voltage rises to a predetermined level, the ACLD connects a diversion load of
sufficient size, to the battery or energy source to prevent the battery voltage from increasing any further. The controller will continue to engage and disengage the load as often as necessary to prevent battery overcharge.

An AC Load Diversion controller is used to divert excess energy to an AC load in an effort to keep the battery bank that is connected to a back-up inverter from being overcharged, when used in an AC Coupled application.

Features

  • Highlights Controls up to 4000 watts of excess power to prevent battery over-charge. Works with 12, 24, or 48 volt systems. Allows the use of common, resistive AC household loads instead of hard-to-find DC loads to divert excessive current. Easy access Inverter and Network ports. Standard RS485 MagNet protocol to communicate with Magnum inverters and remotes. Can utilize power generated from wind, solar, or hydro systems. Provides PWM (Pulse Width Modulation) voltage when powering diversion load to run load without flicker.



General Information
Manufacturer: Magnum Energy
Product Line:
Magnum Accessories
Model ID:
ACLD-40
Certifications and Safety Ratings: ul.jpg



Mechanical Data

Technology: AC Load Diversion Center
Dimensions:
11.50 x 13.75 x 7.00 inches
Weight: 23.00 lbs
Mounting:
Shelf (Top or Bottom Up) or Wall (Vents Up)
Max Operating Altitude: 15,000 Feet
Frequency: 50/60Hz
Input Voltage: 240VAC +10%
Output Voltage: 0-240VDC
Continuous Power: 4000VA
Listings: ETL Listed to UL1741 - Second Edition and CSA C22.2 #107.1-01
Warranty: Three Years (Five Years When Purchased with and Installed on an MP/MMP System)
Operating Temperature: -20°C to +60°C
Non-Operating Temperature: -40°C to +70°C
Operating Humidity: 0 to 95% Non-Condensing



Datasheets

Document Type
logo-adobe-pdf-2.jpgMagnum Energy ACLD-40 Specifications Specifications
Warranty 2 Year Limited Warranty
logo-adobe-pdf-2.jpgMagnum Energy ACLD-40 Warranty Warranty
