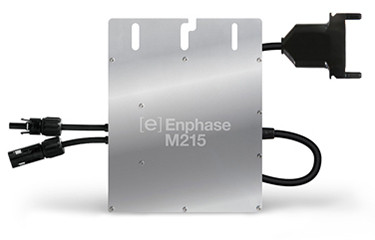

Enphase M215-60-2LL-S25-IG 215W Microinverter

Hover over image to zoom

  • M215-60-2LL-S25-IG
Enphase Energy
Discontinued
SKU: SLG-321-0213
Condition: New
Weight: 4.50 LBS

 Product Description

Enphase 215W mICROINVERTER - M215-60-2LL-S22-IG

Enphase, M215-IG Micro Inverter, 215W, 240/208VAC, 60Hz, 16-45VDC for 60 cell modules, Amphenol H4 Connector in, 16" Engage Cable out, with integrated ground, 25 Yr Warr, M215-60-2LL-S25-IG

The Enphase M215-IG Microinverter (M215-60-2LL-S25-IG) with integrated ground delivers increased energy harvest and reduces design and installation complexity with its all-AC approach. With the advanced M215, the DC circuit is isolated and insulated from ground, so no Ground Electrode Conductor (GEC) is required for the microinverter. This further simplifies installation, enhances safety, and saves on labor and materials costs.

The Enphase M215 integrates seamlessly with the Engage Cable, the Envoy Communications GatewayTM, and Enlighten, Enphase’s monitoring and analysis software.

Features

  • Powerful & Versitile - Maximizes energy production. No GEC needed for microinverter. No DC design or string calculation required.
  • Efficient - Minimizes impact of shading, dust, and debris. Easy installation with Engage Cable.
  • Safe & Reliable -No single point of system failure. More than 1 million hours of testing and millions of units shipped. Industry-leading warranty, up to 25 years.



General Information
Manufacturer: Enphase Energy
Product Line:
M215
Model ID:
M215-60-2LL-S25-IG
Certifications and Safety Ratings: csa.jpg ul.jpg ieee.jpg fcc.jpg



Mechanical Data

Technology: Micro-Inverter
Dimensions:
6.73 x 6.81 x 1.18 Inches
Weight: 3.40 lbs
Enclosure Environmental Rating: Outdoor - NEMA6
Cooling: Natural Convection - No Fans
Compatibility: Compatible with 60-Cell PV Modules
Communication: Power Line
Integrated Ground: The DC circuit meets the requirements for ungrounded PV arrays in
NEC 690.35. Equipment ground is provided in the Engage Cable. No additional GEC or ground is required. Ground fault protection (GFP) is integrated into the microinverter.
Monitoring: Enlighten Manager and MyEnlighten Monitoring Options
Compliance: UL1741/IEEE1547, FCC Part 15 Class B, CAN/CSA-C22.2 NO. 0-M91, 0.4-04, and 107.1-01
Ambient Temperature Range: -40 to +65°C



Electrical Data

Recommended Input Power (STC): 190-270 Watts
Maximum Input DC Voltage: 48 Volts
Peak Power Tracking Voltage: 27-39 Volts
Operating Range: 16-48 Volts
Min/Max Start Voltage: 22 V / 48 Volts
Max DC Short Circuit Current: 15 Amps
Max Input Current: 10 Amps
Peak Output Power: 225W @208 VAC, 225W @240 VAC
Rated (Continuous) Output Power: 215W @208 VAC, 225W @240 VAC
Nominal Output Current: 1.1A @208 VAC, 0.9A @240 VAC
Nominal Voltage/Range: 208V / 183-229V @208 VAC, 240V / 211-264V @240 VAC
Nominal Frequency/Range: 60.0 / 27-61 Hz @208 VAC, 60.0 / 57-61 Hz @240 VAC
Power Factor: >0.95 @208 VAC, >0.95 @240 VAC
Max Units per 20A Branch Circuit: 25(Three Phase) @208 VAC, 17 (Single Phase) @240VAC
Max Output Fault Current: 850 mA rms for 6 cycles @208 VAC, 850 mA rms for 6 cycles @240 VAC
CEC Weighted Efficiency: 96.5% @208 VAC, 96.5% @240 VAC
Peak Inverter Efficiency: 96.5%
Static MPPT Efficiency: 99.4%
Night Time Power Consumption: 65 mW Max



Datasheets

Document Type
logo-adobe-pdf-2.jpgEnphase Energy M215-60-2LL-S25-IG Specs Specifications
logo-adobe-pdf-2.jpgEnphase Energy M215-60-2LL-S25-IG Installation Installation Guide
Warranty 25 Year Limited Warranty
logo-adobe-pdf-2.jpgEnphase Energy M215-60-2LL-S25-IG Warranty Warranty
