Canadian Solar 265w Mono Solar Panel - SmartDC CS6P-265P SD |
Canadian Solar, 265W Smart DC Module with Solaredge Optimizer, MC4, PV Wire, 40mm Black Frame on White Backsheet, BOW, 60 Cell Poly, 15A Fuse, 600VDC, 243.6W PTC, CS6P 265P SD Canadian Solar's SmartDC CS6P-265P SD module features an innovative integration of Canadian Solar’s module technology and SolarEdge’s power optimization for grid-tied PV applications. By replacing the traditional junction-box with a SolarEdge power optimizer, the SmartDC module optimizes power output at module-level. With this feature, the SmartDC module can eliminate the module-level mismatch and decrease shading losses. Furthermore, the SmartDC module provides module-level data to minimize operational costs and allow effective system management. Canadian Solar is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading manufacturer of solar modules and PV project developer with about 10 GW of premium quality module deployed around the world since 2001, Canadian Solar Inc. (NASDAQ:CSIQ) is one of the most bankable solar companies worldwide. |
Features
|
General Information | |
Manufacturer: | Canadian Solar |
Product Line: |
SmartDC |
Model ID: |
CS6P-265P SD |
Certifications and Safety Ratings: | |
Mechanical Data |
|
Technology: | Polycrystalline (Poly) |
Dimensions: |

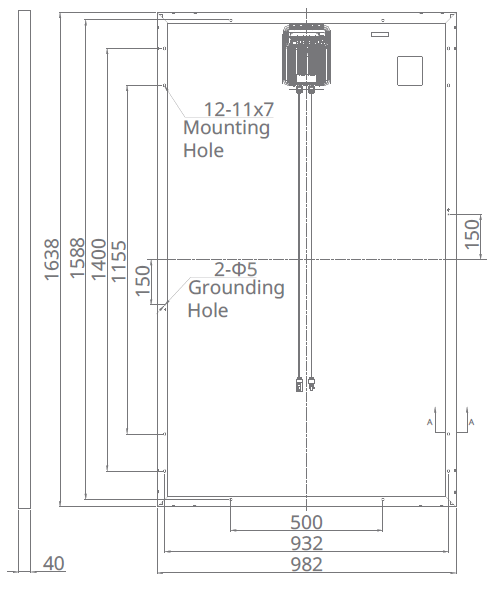

64.50 x 38.70 x 1.57 inches (CS6P-265P SD Dimensions) |
Weight: | 42.10 lbs |
Front Glass: | Tempered Glass (0.12 in) |
Cells: | 60 Poly Cells |
Frame: | Anodized Aluminum Alloy (Black) |
Back Sheet: | (Black) |
Module Connector: | MC4 |
Output Cables: |
PV1-F 1*6.0 mm2 / 952 mm |
Junction Box: | IP65 |
Electrical Data |
|
Nominal Maximum Power (Pmax): | 265 Watts |
Nominal Maxiumum Power (Pmax NOCT): | 192 Watts |
Open Circuit Voltage (Voc STC): | 37.70 Volts |
Output Voltage Ranve (Vout): | 5-60 Volts |
Maximum Output Current (Imax): | 15 Amps |
Operating Temperature: | -40°C~ + 85°C |
Module Efficiency: | 16.47% |
Maximum System Voltage: | 1000 V (IEC) / 600 V (UL) |
Power Tolerance: | 0 / +5 W |
Datasheets |
|
Document | Type |
Canadian Solar CS6P-265P SD Specs | Specifications |
Canadian Solar CS6P-265P SD Manual | Installation Guide |
Warranty | 10 Year Limited Product Warranty |
Performance Guarantee | 25 Year Limited Performance Warranty |
Canadian Solar CS6P-265P SD Warranty | Warranty |
