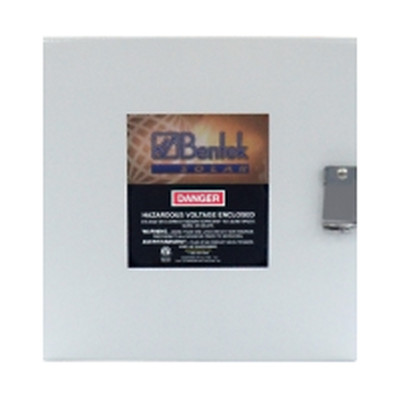

75A FIBERGLASS COMBINER BOX (BTK610-0415-FB)
Bentek, Combiner Box, 4 Pole, 75A, Specify 600VDC OR 1000VDC, 8" x 8", Max Fuse size 25A-comes with 15A Fuse, Fiberglass NEMA 4X, BTK610-0415-FB
Meet your technical and budget requirements with these basic combiners. Flexible design allows for customization and ease of installation.
Features
NEMA-4 steel or 4X fiberglass enclosures.
600VDC or 1000VDC.
Labeling to meet NEC code requirements.
Unique serial number on each unit.
Lockable door.
Poured-in-place seamless gasket on door.
Installable vertically or horizontally.
Rated for continuous duty.
6, 12, 16, 24, or 42 input circuits.
Touch-safe fuse folders.
Maximum fuse size of 25A (20A on 12 input circuits); standard is 15A.
Terminals support both aluminum and copper wire.
ETL Listed to UL1741.
ETL Listed to CSA Std. 22.2 No. 107 (600VDC).
ISO 9001:2008 Quality Certified.
Product Weight | 30.000 lbs |
Product Depth | 6.000 inches |
Product Height | 8.000 inches |
Product Width | 8.000 inches |
Warranty
See downloads for details.
Certifications
All of our Solar equipment is rigorously tested to meet and exceed solar energy industry standards.
